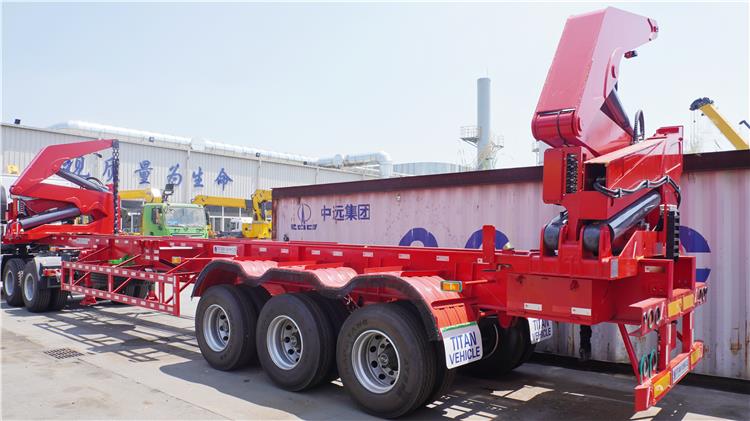

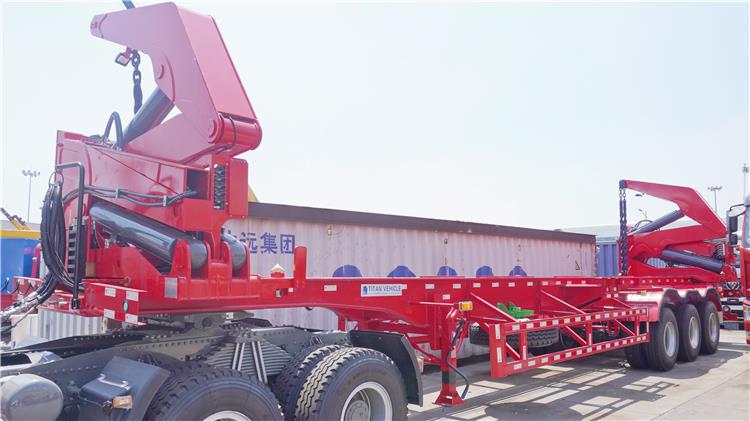

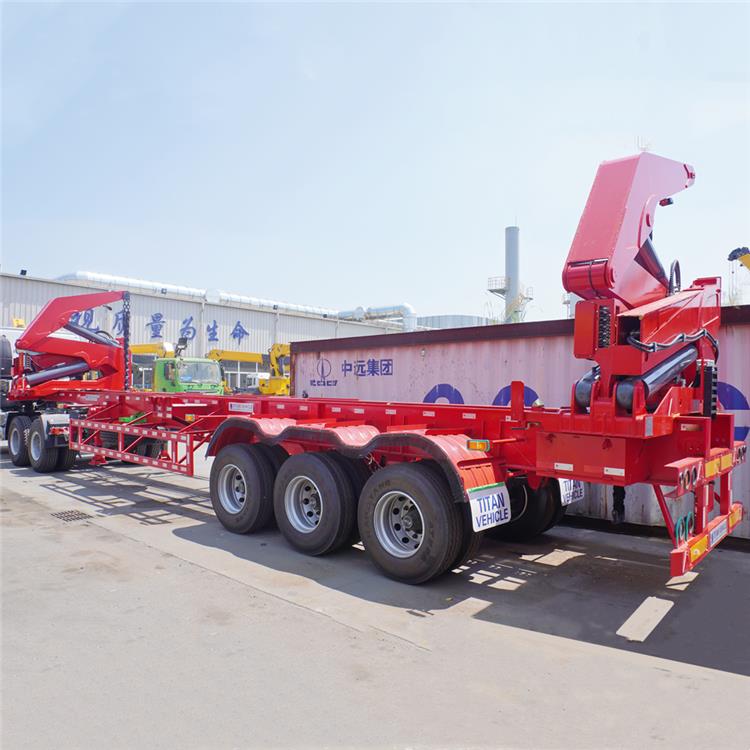

20ft 40ft Container Side Loader Truck Trailer

Container Side Loader Trailer Description:

The 20ft 40ft container side loader truck trailer is a container-specific loading and unloading trailer, which is used in container terminals and transfer yards. The role of 20ft 40ft container side loader truck trailer is to realize container handling, such as loading and unloading of 40ft sideloader trailer, side lifters for sale.

When we work in specific locations, sometimes there is limited space in the front and back of the container to load and unload the container, and the 20ft 40ft container side loader truck trailer is the perfect solution. It is ideal to use the container side loader for delivery after transporting the container to the designated location.

20ft 40ft Container Side Loader Truck Trailer for Sale In Guinea

20ft 40ft Container Side Loader Truck Trailer for Sale In Guinea

20ft 40ft Container Side Loader Truck Trailer for Sale In Guinea

Specification of Container Loader Trailer：

Max. lifting capacity: 40Ton

Max.stabilizer outreach: 3200mm

Max.working range: 4000mm

Overall height: 2500mm

Overall length: 1020mm

Max.pressure of hydraulic system: 28Mpa

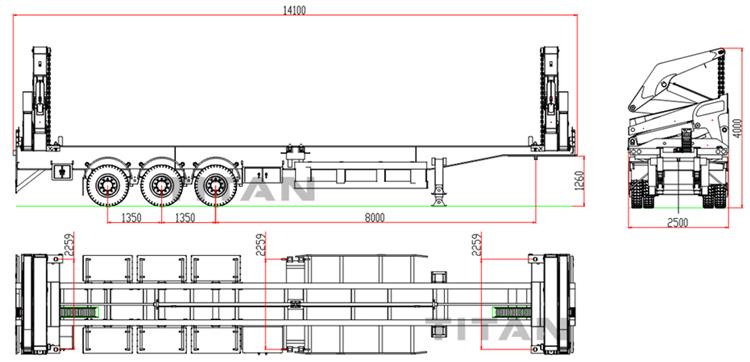

Dimension(L*W*H): 14100*2500*4200mm

Axle: 3 axle* 13 ton (220mm brake pads)

Tire: 12 pcs, 12R22.5

Suspension: Heavy-duty type mechanical spring suspension

Kingpin: 3.5-inch bolted type

Braking system: WABCO Emergency valve

Landing gear: JOST

Tow Chain: lgus (imported)

Power source: Power take-off (equipped)

Hydraulic pump: Gear type Casappa Italy

Direction control valves: AMCA Holand

Remote Control: NBB Germany

20ft 40ft Container Side Loader Truck Trailer for Sale In Guinea

Characteristics of Container Side Loader Trailer:

1. Container side loader truck can be moved back and forth and can be used for both standard 20 and 40 foot containers.

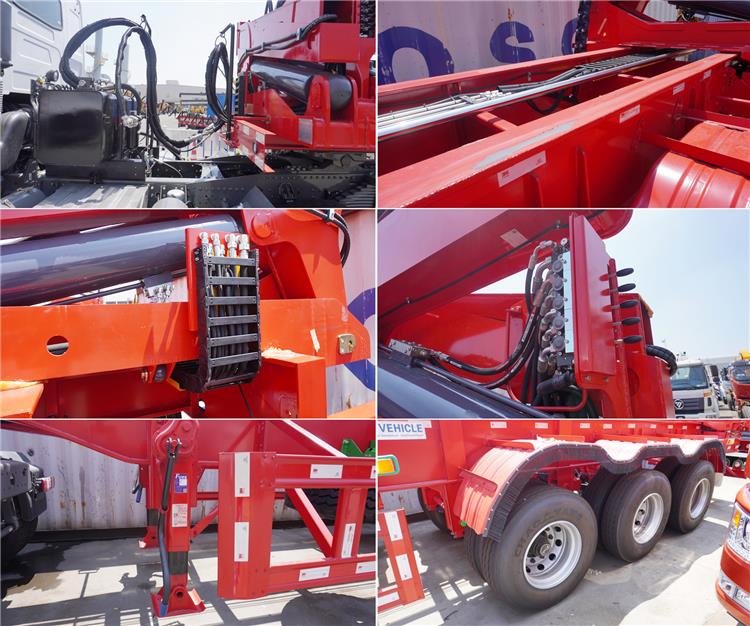

2. Container side loader trailer adopts a wireless remote control system, equipped with imported remote control, which is easy to operate and reliable in micro movement. It reserves manual operation mode. It is equipped with an imported solenoid valve, and the control is accurate.

3. The container side loader for sale structural parts are welded from high-strength imported steel plates, and the entire trailer has undergone stress tests.

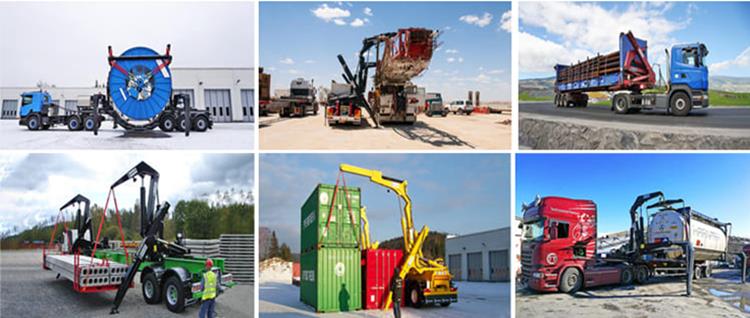

4. 40ft container side loader can not only load and unload containers, but also load and unload Pre-fabricated concrete, Stacking containers , swap bodies , Drilling & Crane rigs , Cable drums , Pipes.

20ft 40ft Container Side Loader Truck Trailer for Sale In Guinea

Package of Container Side Loader Trailer:

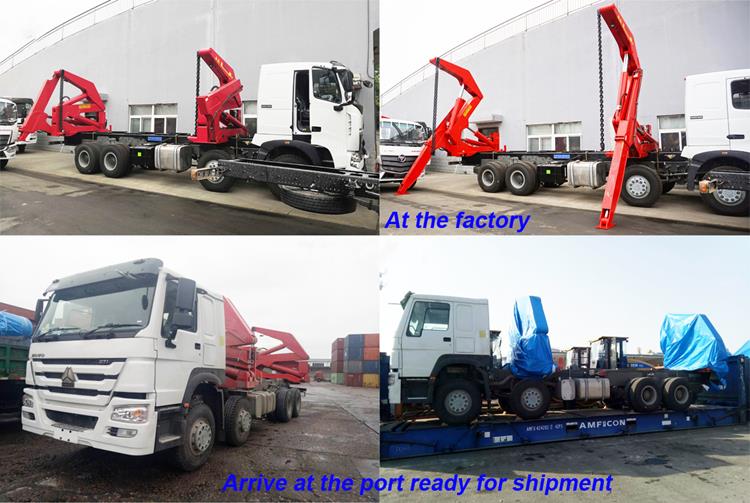

Container side loader trailer for sale are usually adopted by bulk carriers or ro-ro ships. We spray wax on the petrol trailer. Cover 40ft container side loader trailer with a waterproof rain cloth. Some countries can also ship by container or frame cabinet.

20ft 40ft Container Side Loader Truck Trailer for Sale In Guinea

Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
