3 Axles 40ft Skeleton Container Semi Trailer

Name: 3 Axles 40ft Skeleton Container Semi Trailer
Rating: 0.00 (0 reviews)

The skeleton trailer for sale is specially used for the transportation of various containers. It can be used repeatedly for a long time and has high strength characteristics. The skeleton container trailer is widely used in modern logistics and transportation. TITANskeleton trailer can meet various personalized needs of customers, improve loading and unloading efficiency, and reduce transportation costs.

SKU:

GTIN:

MPN:

Brand:

Description of 40ft skeleton trailer for sale:

The skeleton container trailer is a semi-trailer with a container structure in the cargo part, mainly including 40-foot skeleton, 43-foot, 45-foot skeleton trailer, etc. TITAN can be customized according to your different needs for shipping containers. And the 40ft 3 axles skeleton semi trailer is one of the most popular model in TITAN.

The appearance of the TITAN skeleton trailer for sale is simple and elegant, and the color can be customized according to customer needs. Visually, you can feel the overall coordination and beauty, and the Titan skeleton trailer can also reduce fuel consumption, which is energy-saving and environmentally friendly.

The skeleton trailer commonly used for the transportation of various containers. And the 40ft skeleton trailer for sale usually used to transport the 20ft containers, 40ft containers. Most of the skeleton container trailer are equipped with various containers or tarpaulin roller shutter lift-top boxes to transport goods. Mainly used in logistics systems supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.

3 Axles 40ft Skeleton Container Semi Trailer for Sale in Ghana Accra

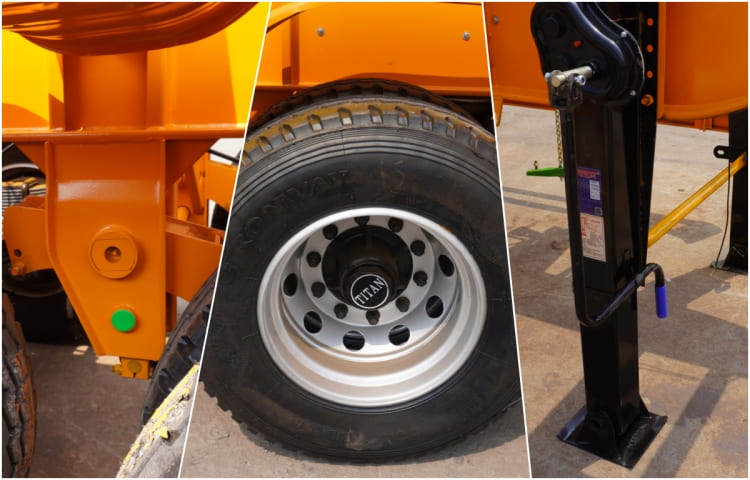

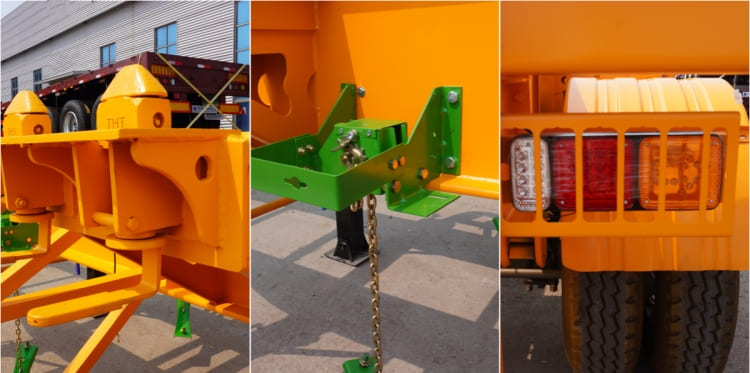

3 Axles Skeleton Semi Trailer Details:

3 Axles 40ft Skeleton Container Semi Trailer for Sale in Ghana Accra

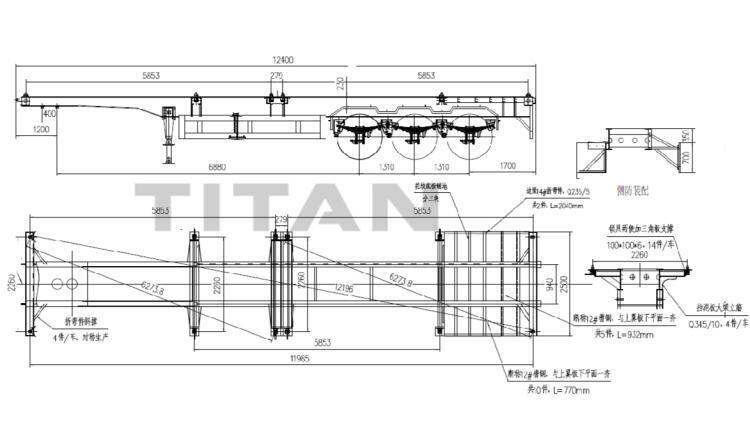

40ft Skeleton Trailer for Sale Specfication:

Model: 40ft 3 axles skeleton semi trailer

Transport: 20ft, 40ft container

Loading capacity(ton): ≤80T

Overall dimension: 12400mm * 2500mm *1530mm

Axles: 3 axles , 13t/16 tons, 16 ton breaking lining

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA brand

Brake system: WABCO brand

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1 PCS

Painting: polyurethane paint

Shipping method: By bulk cargo carrier, RORO or 40HQ container

3 Axles 40ft Skeleton Container Semi Trailer for Sale in Ghana Accra

Skeleton Container Trailer Advantages:

1. The main beam and the longitudinal beam of the skeleton trailer are welded by high-strength plates, which have the characteristics of high strength, rigidity, good toughness, strong bearing capacity, no deformation, and long service life.

2. TITAN skeleton trailer for sale uses automatic arc-submerging welding method to weld the main beam, so there is no welding interface between middle,bottom and upper plate of main beam. Which make the skeleton trailer is more stronger and more durable.

3. All accessories of this skeleton trailer for sale are from international famous brands, which greatly improves the transportation and loading capacity of the whole skeleton container trailer, improves the service life, and allows customers to buy the best quality at the lowest price.

4.The paint is made of well-known brand products, which is polyurethane paint, and the anti-rust primer is pre-sprayed to ensure that the paint system of the whole skeleton trailer for sale has good anti-corrosion and anti-rust performance. The skeleton trailer is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. In order to save the transportation cost of customers, this 40ft skeleton trailer for sale can be loaded into a container every two units, without removing the tire axles, realizing the containerized transportation of the whole skeleton trailer, and it is convenient for customers to load and unload the trailer under the condition of saving freight.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.
