3 Axles 60 Ton Side Wall Flatbed Semi Trailer

3 Axles Side Wall Trailer Description:

At the same time, the side wall flatbed semi trailer are designed and manufactured according to user requirements, and produce double-layer fresh animal transport vehicles, fruit and vegetable transport vehicles, etc., which are suitable for medium and short-distance road transportation. It can also be used as a normal truck. It is applied to the highly developed road transportation industry, especially the rapid development of modern logistics industry.

3 axles 60 ton side wall trailer is the most popular model in TITAN. At the same time, TITAN also can provides 2/3/4 axles side wall trailer, and the load capacity ranging from 40 tons to 100 tons. Of course, we can also customize it for you according to your different needs.

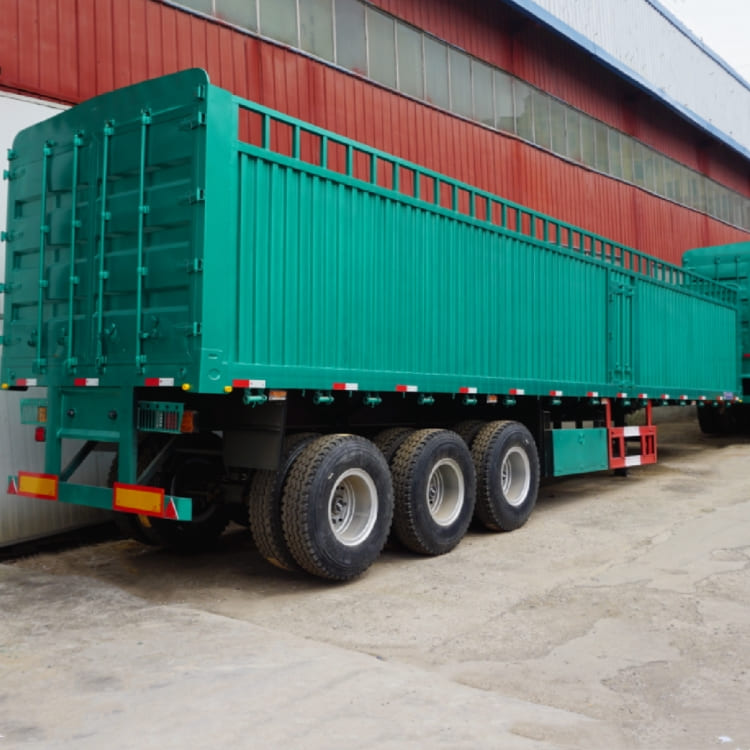

3 Axles 60 Ton China Side Wall Flatbed Semi Trailer in Malaysia

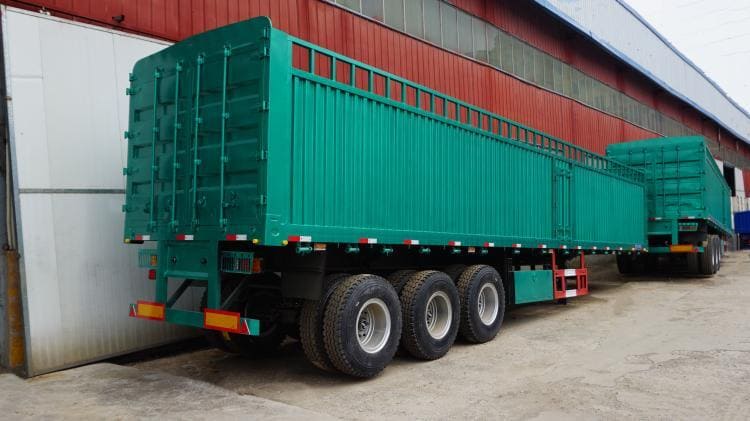

3 Axles 60 Ton China Side Wall Flatbed Semi Trailer in Malaysia

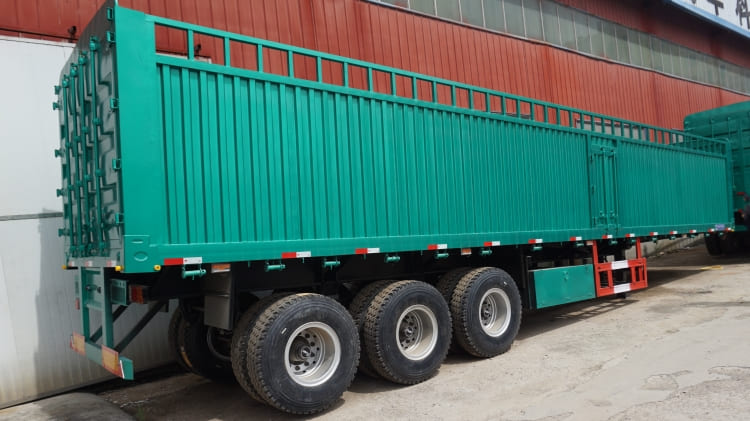

3 Axles 60 Ton China Side Wall Flatbed Semi Trailer in Malaysia

Side Wall Trailer Specification:

Model: 3 axles 60 ton side wall trailer,

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): 60-80T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

China Side Wall Trailer Advantages:

1. In the design of the appearance of the carriage of the side wall trailer,, it strives for beautiful appearance, reasonable internal structure and advanced technology. It adopts high-quality steel and is welded in strict accordance with the industry standard. It is convenient and practical, safe and reliable.

2. The space frame structure of side wall semi trailer is welded by longitudinal beams and integral penetrating beams. It can balance the strength, stiffness and toughness of the frame, with strong bearing capacity and no deformation.

3. The suspension system of TITAN side wall trailer adopts internationally renowned brands, with high strength and strong impact resistance; the load of each axle is balanced, and the angle design of the system tie rod is reasonable, which reduces the friction and slip distance between the tire and the ground during frequent bumpy operations, and effectively reduces tire wear.

4. TITAN  side wall flatbed semi trailer uses automatic arc-submerging welding method to weld the main beam, which make sure the main beam is more stronger and more durable. TITAN also adopts advanced submerged arc welding technique to produce the side wall trailer, so there is no welding interface between middle,bottom and upper plate of main beam.

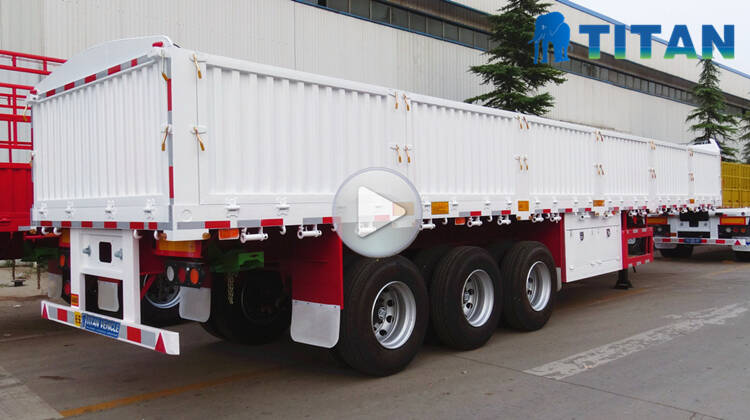

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
