3 Axles 60 Ton Fence Cargo Truck Trailer

3 Axles Fence Trailer Description:

Fence trailer for sale is a trailer designed with a fence structure for the cargo part. Mainly used for the transportation of agricultural and sideline products and other bulk cargo. TITAN can provide you with various models and specifications of fence cargo trailer to meet your different cargo needs, including 2, 3, and 4 axles, with a cargo capacity ranging from 40-100 tons. Among them, 60 ton fence trailer are the most popular products.

The design process of the fence trailer model and the fence structure is reasonable, the weight of the carriage can be fully reduced under the condition of the load, the structure is simple and applicable, the warehouse-type structure is easy to disassemble, and the load capacity is strong, which reduces the investment cost for the user, creates more profit value, and improves the work efficiency.

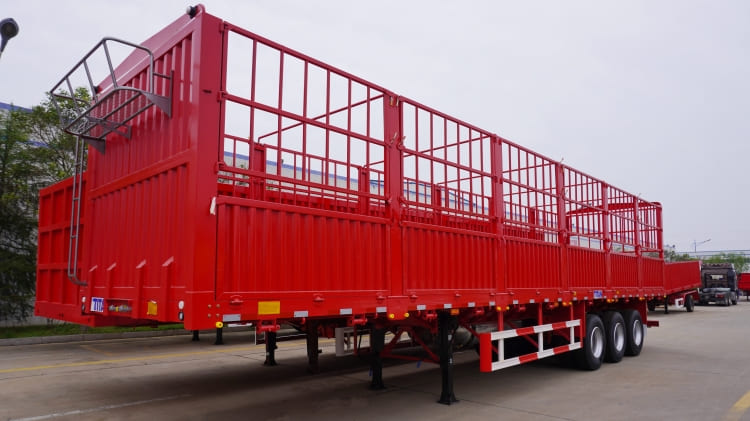

3 Axles 60 Ton Fence Cargo Truck Trailer for Sale in Sierra Leone

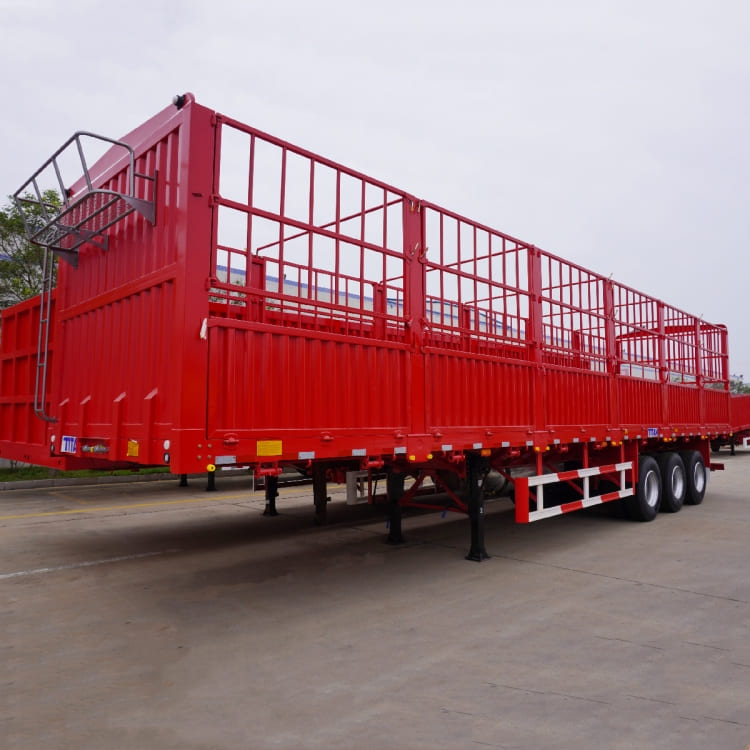

3 Axles 60 Ton Fence Cargo Truck Trailer for Sale in Sierra Leone

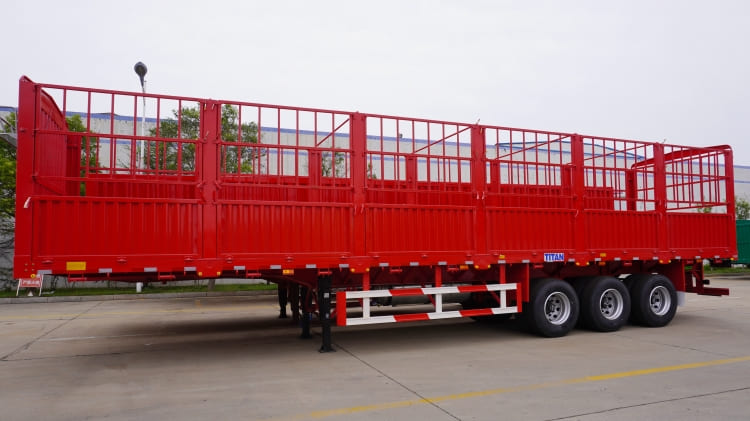

3 Axles 60 Ton Fence Cargo Truck Trailer for Sale in Sierra Leone

Specification of 3 Axles Fence Trailer:

Model: 3 axles 60 ton fence trailer

Transport: Agricultural and sideline products and some bulk cargo

Loading capacity(ton): 60-80T

Overall dimension: 13000mm * 2600mm *3200mm

Platform: 3mm-thick checkered plate

Axles: 3 axles , 13t/16 ton, 16 tons breaking lining

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA

Brake system: WABCO brand

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1  PCS

Painting: polyurethane paint

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Fence Truck Trailer Advantages:

1. TITAN fence trailer suspension adopts international famous brand, the latest design of the suspension system, high strength, strong impact resistance, strong load capacity, balanced axle load of each axle, reasonable design of the system tie rod angle, can effectively reduce the bumps in the process of running frequently The friction slip distance between the tire and the ground reduces tire wear, while the TITAN suspension of fence truck trailer is equipped with a pull rod system, which can adjust the wheelbase at any time.

2. The frame of TITAN fence cargo trailer adopts a space frame structure welded by longitudinal beams and integral penetrating beams, which can balance the strength, stiffness and toughness of the frame, with strong bearing capacity, prolong the service life of the vehicle, without deformation, and maximize work efficiency. .

3. The series of fence trailer for sale frames are all beam-type structures, and the longitudinal beams are straight or gooseneck. The height of the web varies from 400 to 500, the longitudinal beam is welded by automatic submerged arc welding technology, and the transverse beam penetrates the longitudinal beam and is welded as a whole.

4. Besides,TITAN have professional team to package the 3 axles fence trailer together to save shipping cost for our customer. TITAN will also provide the most professional after-sale service to our customer. We will cover tarp on the trailers to protect fence trailer, which is totally for free.

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
