4 Axle 40m3 Bulker Powder Cement Tanker Trailer

Name: 4 Axle 40m3 Bulker Powder Cement Tanker Trailer
Rating: 0.00 (0 reviews)

The 4 axle 40m3 bulker cement power tanker trailer used to transport cement is a bulk powder transporter composed of a specially designed chassis, pneumatic piping system, tanker, and unloading unit. Different bulker cement prices according to different size and configuration.

SKU:

GTIN:

MPN:

Brand:

Bulker Cement Tanker Trailer Description:

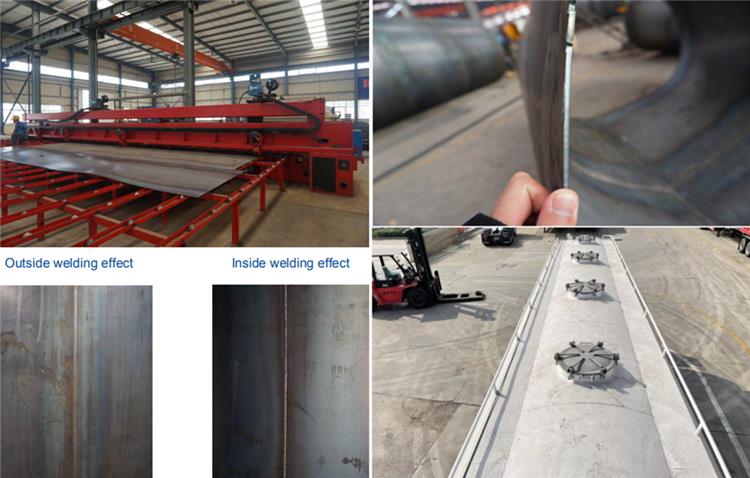

TITAN’s bulk cement transport tank body as a whole is made of high-strength alloy steel from a well-known domestic manufacturer, with very tight welding, good airtightness, and good performance, and also adopts advanced technology, fluidized bed, non-planning structure, gas material separation device, and safe discharge device, which effectively reduces the weight of the vehicle and improves the discharge speed.

Each set of bulker cement tanker power trailer can hold up to 100 cubic meters. It provides an ideal solution for transporting large amounts of cement, especially for heavy construction projects, which is different from using a traditional bulk cement trailers for sale.

4 Axle 40m3 Bulker Powder Cement Tanker Transport Truck Trailer for Sale Manufacturer

Bulker Cement Tanker Specification:

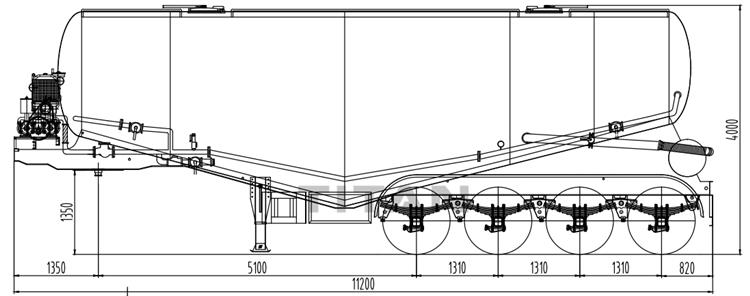

Dimension: 11200mm * 2000mm *4000mm (the exact size depends on the final design.)

Tanker body material : 5mm high strength wear-resistance steel

Payload : 40m3

Axles：4 axles

Tire：16 units

Application: transport lime, cement, powder etc.

Tank body thickness: 3.5mm

Compressor: 12m³ double cylinder air compressor

Spare tire rack: 2 units

Leaf spring: 10 pieces

Sprinkler: one sprinkler; car waxing

Diesel Engine: WEICHAI Brand

Compressor: BOHAI

Suspension: Heavy-duty mechanical suspension

Landing gear: JOST

Brake system: WABCO

Light: LED light (especially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service life, and avoid the vehicle getting rust

4 Axle 40m3 Bulker Powder Cement Tanker Transport Truck Trailer for Sale Manufacturer

Basic Structure of Bulker Cement Tank Trailer:

1. Running system

2. Power system

Engine: The engine set provides power to the air compressor;

Power take-off: the main function is to take out the engine power and transmit it to the air compressor through the transmission shaft.

3. Air compressor

4. Air pipes: Including air intake, air distribution, pressure relief, secondary blowing, etc.

5. Tank: the sealed container for loading materials.

6. Loading and unloading device: the loading tank can be connected with the storage tower pipeline, which is controlled by a butterfly valve and is used for conveying materials.

4 Axle 40m3 Bulker Powder Cement Tanker Transport Truck Trailer for Sale Manufacturer

Through these videos, you can learn about different types of bulk cement tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
