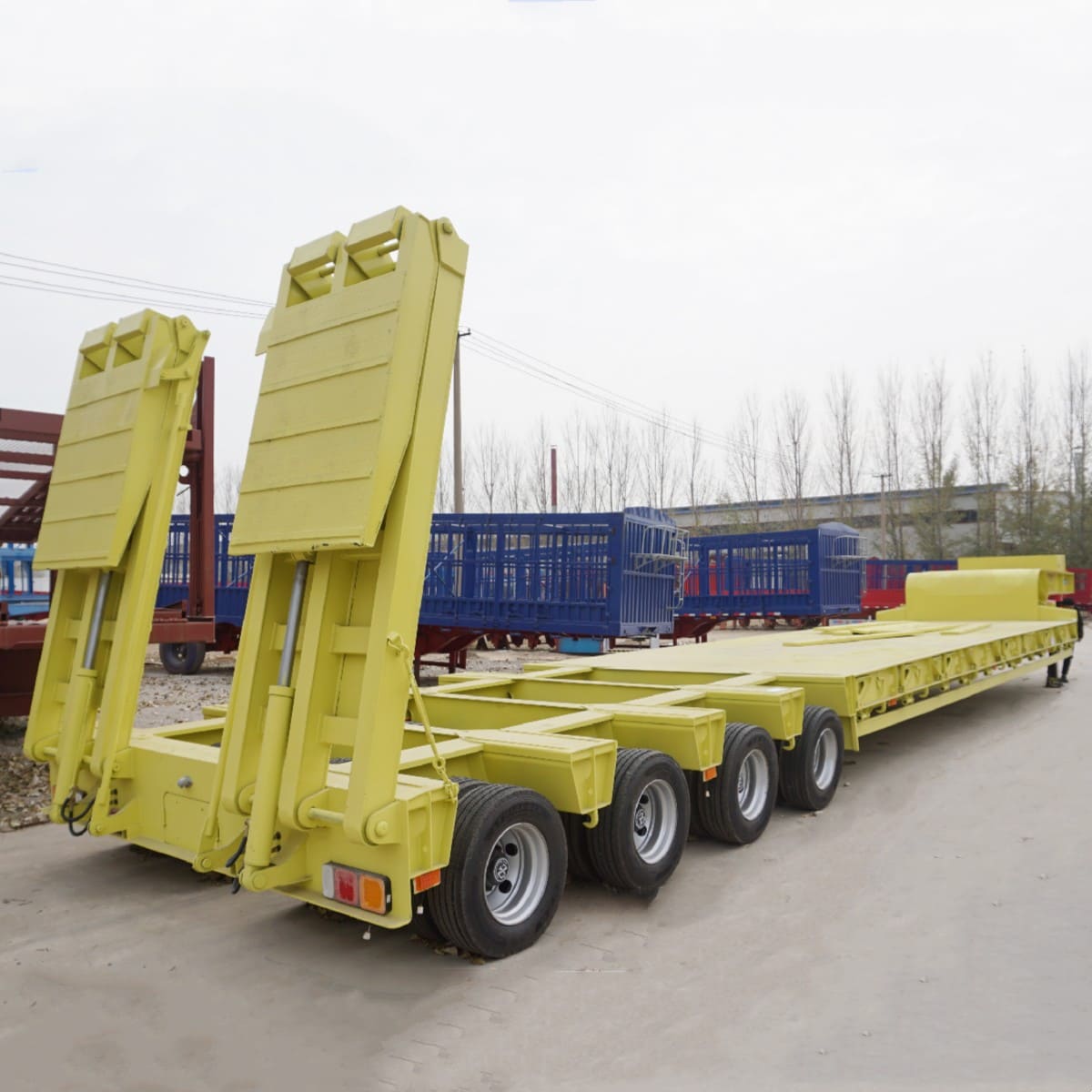

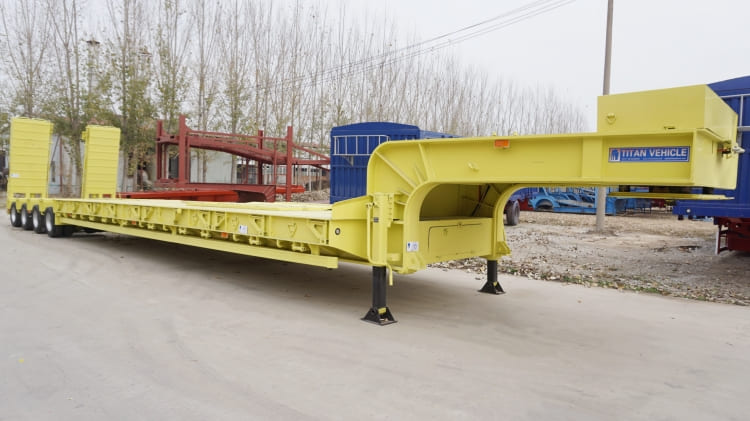

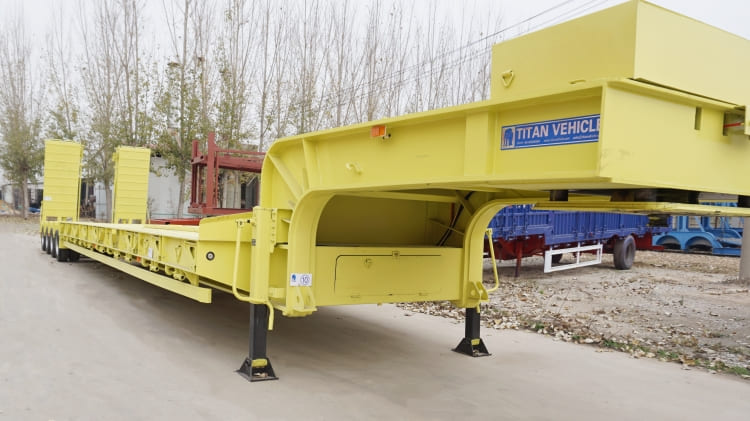

4 Line 8 Axle 150t Low Drop Deck Semi Trailer

Name: 4 Line 8 Axle 150t Low Drop Deck Semi Trailer
Rating: 0.00 (0 reviews)

TITAN can provide you with a low deck trailer of the 2/3/4 bridge. The load capacity ranges from 40-100 tons. At the same time, TITAN can also meet your personalized transportation needs and provide you with 2 line 4 axle, 3 line 6 axle, 4 line 8 axle drop deck trailer. And the 4 line 8 axle drop deck trailer is one of the popular product in TITAN.

SKU:

GTIN:

MPN:

Brand:

Description of Drop Deck Trailer:

TITAN is a company with a large number of production and technical personnel who specializes in drop deck trailer manufacturing. The company's production equipment is advanced, the craftsmanship, and the inspection equipment is complete. And the products have reached or surpassed various performance indicators in other similar products in China. Among them, drop deck semi trailer are one of the main models of TITAN. The low deck trailer produced by TITAN is reasonable and reliable, and the products are sold all over the world. They are deeply trusted by users.

Drop deck semi trailer transport vehicles are generally transported to transport large non-removable construction machinery, such as: excavators, bulldozers, harvesters, loaders, forklifts and other heavy-duty vehicles that are not easy to move by themselves. There are two ladders at the rear of this low deck trailer, which can haul excavators and other equipment to its cargo platform, which is convenient and fast.

4 Line 8 Axle 150t Low Drop Deck Semi Trailer for Sale in Zimbabwe Bulawayo

Drop Deck Trailer Specification:

Model: 4 line 8 axle drop deck trailer

Overall dimension: 17500mm * 3500mm *3400mm

Loading capacity(T): 150T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 32 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

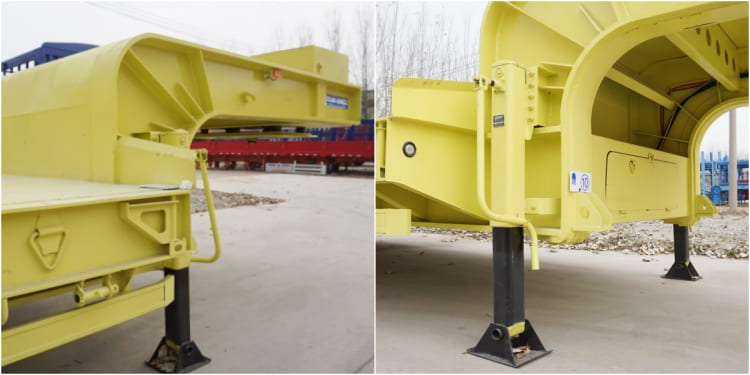

Landing gear: JOST brand/FUWA brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm

Bottom Platform: 5mm thick checkered plat

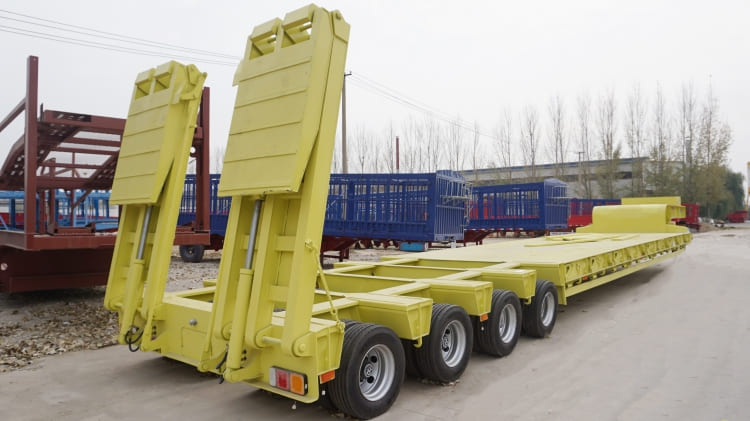

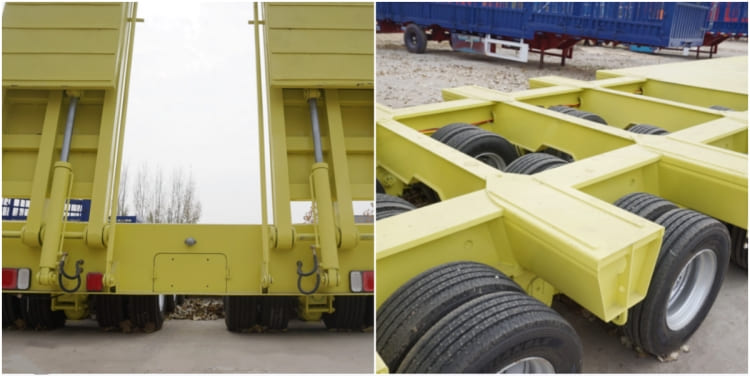

Ramp: hydraulic ladder/ spring ladder

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24 V

Socket: 7-pin socket(for 7 wire harness)

Shipping method: Transport by bulk cargo shipping or RORO shipping

Low Deck Trailer Advantages:

1. The structure of the drop deck trailer is flat, concave beams and tire exposure, and the longitudinal beam is flat or goose neck type. Its frame is a stepped type, and the section of the longitudinal beam is the H shape. Therefore, it can ensure the ability of its concentrated force and has the characteristics of high strength and strong load ability.

2. The main plane of the drop deck trailer cargo table is low, ensuring the stability of transportation, and it is suitable to carry various construction machinery, large equipment and steel. And the bottom plate of the TITAN drop deck semi trailer is 5mm diamond shaped plate, which is thicker than the 4mm plate used in other factories. The bottom plate is sturdy and durable, and it is not easy to deform.

3. The low deck trailer of TITAN adopts a reinforced and thickened suspension. It is equipped with a balanced pin between the front and rear springs, which can balance the front and rear shafts and improve the load -bearing capacity of the vehicle body, which greatly increases the use of the drop deck semi trailer. TITAN tablets are optimized and flexible and diverse. According to user requirements, design frame carrier surfaces to meet the transportation of various special goods.

4. Our drop deck trailer with polyurethane coatings, high adhesion, high color rendering, beautiful color, and the cost is twice that of ordinary paint. The annual limit is long and will not fall off within five years. And the color can be customized according to customer needs.

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
