45000 Liters Trailer Diesel Tank

Description of Trailer Diesel Tank

This model is 3axle 45000L diesel tank trailer

Its Volume is 45000 liters

It is mainly used for transporting many different kinds of liquids, such asdiesel, gasoline, edible oil and chemical liquids, etc.

The liquid will generate huge tension and impact during transportation, so the tank must be strong enough.

45000 Liters Trailer Diesel Tank for Sale Wholesale Price

45000 Liters Trailer Diesel Tank for Sale Wholesale Price

Advantages of Trailer Diesel Tank

1. The manhole cover is a high-quality explosion-proof cover. The bottom outlet of the tank is equipped with an emergency shut-off valve. Keep the acid tanker trailer safe.

2. After the end of the production, we will carry out pressure test and metal detection test to ensure the tank is highly sealed and avoid oil leakage.

3. Our diesel tank trailer adopts well-known brand parts, which can save cost and ensure long-term service.

Specification of Trailer Diesel Tank

Dimension: 11100mm*2500mm*3800mm (the exact size depends on the final design.)

Volume: 45m3

Tank Body Material: 5mm  stainless steel

End plate: 6mm  stainless steel

Bottom Valve: Aluminum API Pneumatic Bottom Valve

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Axle: 3 axles, 13T

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: 2.0 or 3.5 inch

Suspension: Mechanical suspension

Leaf Spring: 90(w)mm*13(thickness)

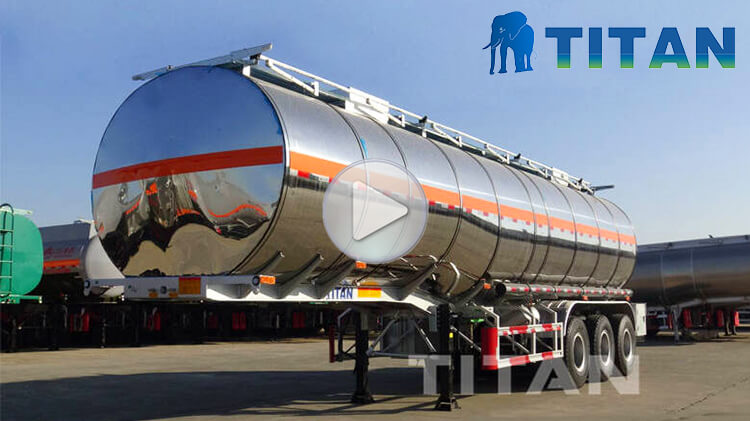

Video of Trailer Diesel Tank

You can also click "TITAN Trailer Diesel Tank" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
