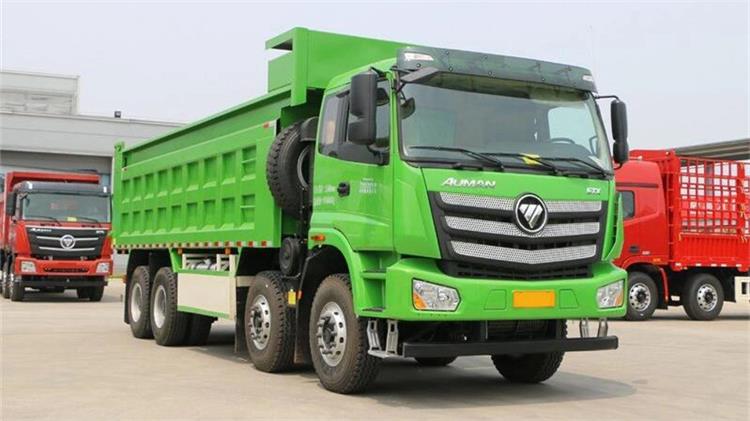

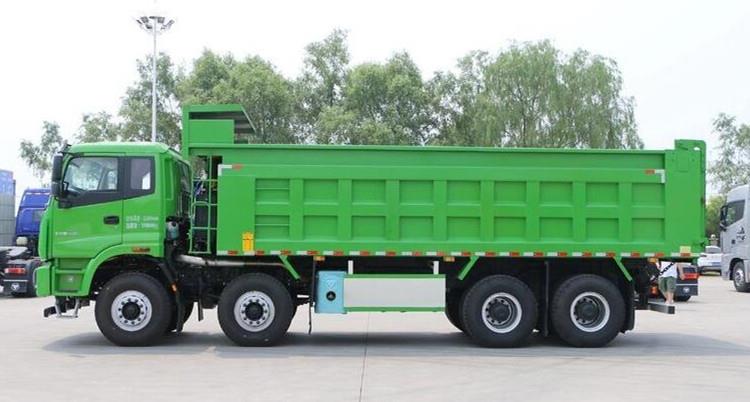

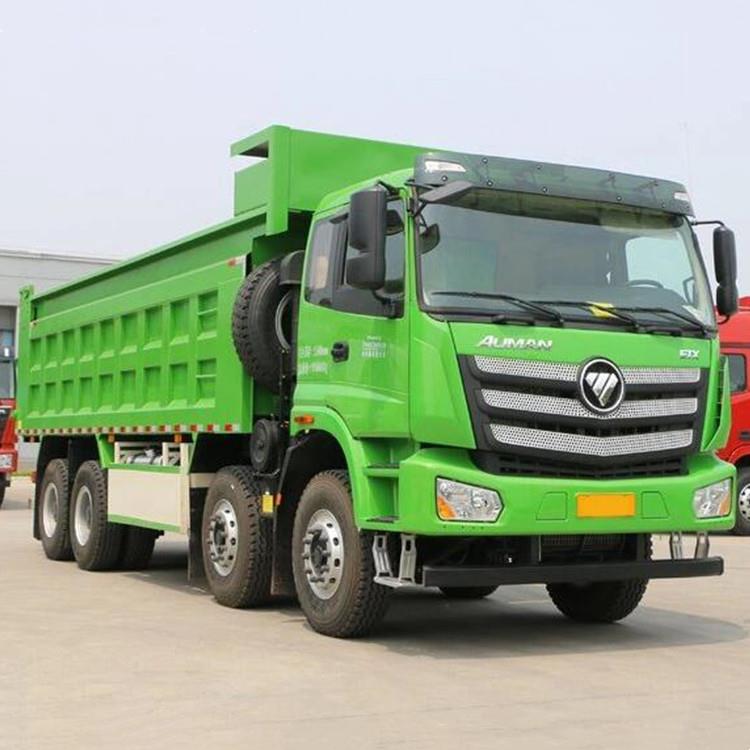

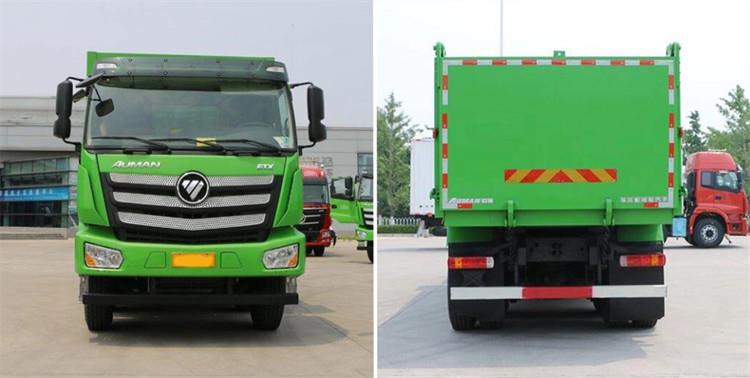

Foton ETX 12 Wheel Tipper Truck

12 Wheel Tipper Truck Description:

Foton tipper truck feature a classic powertrain and advanced technologies, which includes the world’s leading transmissions and engines. Foton Auman etx 12 wheel tipper has proven to be extremely reliable. Foton 12 wheel tipper truck is recommended for mining projects or sediment transport operations. Cheap tipper truck for sale is powered By Weichai Engines.

10-Liter to 12-Liter diesel engines (270-380 hp) are mature, tried-and-tested technology. ETX foton tipper truck price handle well in various working conditions. Weichai WD series engines also perform at a lower RPM and with high torque, have quick acceleration and great climbing performance. Completely meets Euro-II emissions standards.

Foton ETX 12 Wheel Tipper Truck Price | Dheap Tipper Truck for Sale

Foton ETX 12 Wheel Tipper Truck Price | Dheap Tipper Truck for Sale

Foton ETX 12 Wheel Tipper Truck Price | Dheap Tipper Truck for Sale

Specification of Foton Tipper Truck Price:

Drive form: 8x4

Wheelbase: 1800+3300+1350mm

Engine: Weichai WP12 375E50

Transmission case: Fast 12jsd180ta

Rear axle speed ratio: 5.92

Body length: 9.68 meters

Body width: 2.495 meters

Vehicle height: 3.58 meters

Vehicle weight: 14.71 tons

Rated load: 16.16 tons

Total mass: 31 tons

Tonnage class: Heavy truck

Approach angle: 18 degrees

Departure angle: 24 degrees

Number of cylinders: 6

Fuel type: diesel

Displacement: 11.596L

Emission standard: National five

Maximum horsepower: 375 HP

Maximum output power: 276kW

Maximum torque: 1800N·m

Maximum torque speed: 1000-1400rpm

Rated speed: 1900rpm

Engine type: In line, water-cooled, six cylinder, electronically controlled high-pressure common rail SCR

Container length: 6.5 meters

Container width: 2.35 meters

Container height: 1.5 meters

Forward gear: 12th gear

Number of reverse gears: 2

Tire specification: 12.00R20

Number of tires: 12

Tank capacity: 350L

Front axle Description: 9T

Allowable load of front axle: 6500/6500kg

Rear axle Description: 16t Benz

Allowable load of rear axle: 18000 (two axle group) kg

Number of springs: 10/10/12

Advantages of tipper truck for sale:

1. Reliable Transmission

FAST-brand transmissions are small, lightweight and come in nine-speed or twelve-speed. FAST-brand transmissions have a main-box and an auxiliary-box twin-countershaft structure. FAST-brand transmissions are efficient and support high load capacity with low gear ratios; in addition, gears are fully synchronized, so getting into gear or shifting is simple.

2. Powerful

ETX foton 12 wheel tipper truck price come equipped with 10-Liter to 12-Liter large displacement Cummins or Weichai engines, and engine displacement is larger than other in-class trucks. All ETX 12 wheel tipper meet the requirements of harsh off-highway tipper truck working conditions, with power output ranging from 270-440 hp. Foton tipper truck price feature FAST-brand twelve-speed, Synchromesh twin countershaft transmissions. FAST-brand Syncromesh transmissions are small and lightweight with torque output ranging from 1800-2000 Nm. FAST-brand Syncromesh transmissions, with a simple design, have few parts that require maintenance.

3. High Payload Capacity of Frame

Frame is made of a high-strength, single mold steel alloy with a width of up to 865 mm. Beams on the inside and outside are 8 mm + 7 mm thick and cannot be easily deformed. Foton auman etx tipper truck for sale has a higher load capacity than other similar in-class trucks.

4. Large Clearance

Ground clearance is 320 mm high, 20mm higher than similar in-class trucks. High mounted front steel bumpers protect against unwieldy roads, even when under full load.

5. High Payload Capacity of Suspension

Suspension is strengthened with gusset plate to reduce frame flex.

Double U-Bolts are used to support the higher load.

Frame is strengthened with longer gusset plates and multiple layers of rivets, thus increasing the number of contact points with the subframe.

6. Mature Powertrain

ETX 12 wheel tipper truck for sale is equipped with a classic powertrain and advanced technologies. Vehicles feature powerful Weichai engines, high-torque FAST transmissions as well as ANKAI rear axles. Foton tipper truck price has proven reliable on the market and are a favorite choice among customers. Cheap tipper truck for sale is high performance and have been proven reliable. The standard parts are easily replaceable, thus lowering maintenance costs.
