2 Line 4 Axle Detachable Lowboy Semi Trailer

Lowboy Trailer Description:

Lowboy semi trailer are usually used to transport heavy machinery, such as tractors, buses, special vehicles, etc., rail vehicles, mining machinery, forestry machinery, construction machinery, such as excavators, bulldozers, loaders, pavers, cranes, etc. and For other heavy loads, the lower the center of gravity, the better the stability and safety, and the greater the ability to transport super high loads and pass overhead obstacles.

When loading a vehicle on a heavy duty lowboy trailer, it is usually loaded from the front of the lowboy trailer, that is, the vehicle is moved from the front of the frame, and then the heavy machinery is fixed on the lowboy semi trailer. The method is more convenient, the loading efficiency is high, the stability during loading is good, and the safety factor is high.

2 Line 4 Axle Heavy Duty Detachable Lowboy Semi Trailer for Sale in Guinea

2 Line 4 Axle Heavy Duty Detachable Lowboy Semi Trailer for Sale in Guinea

2 Line 4 Axle Heavy Duty Detachable Lowboy Semi Trailer for Sale in Guinea

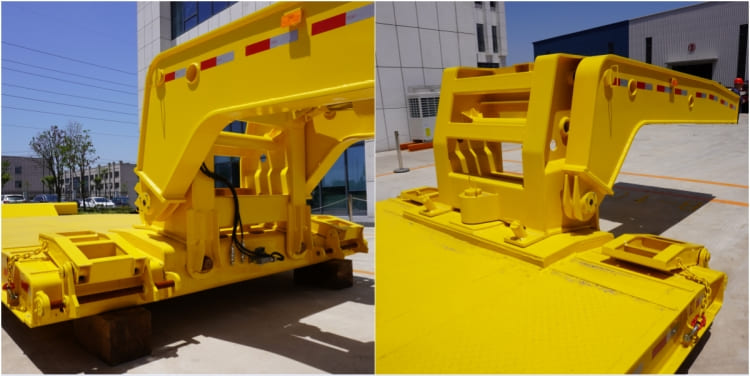

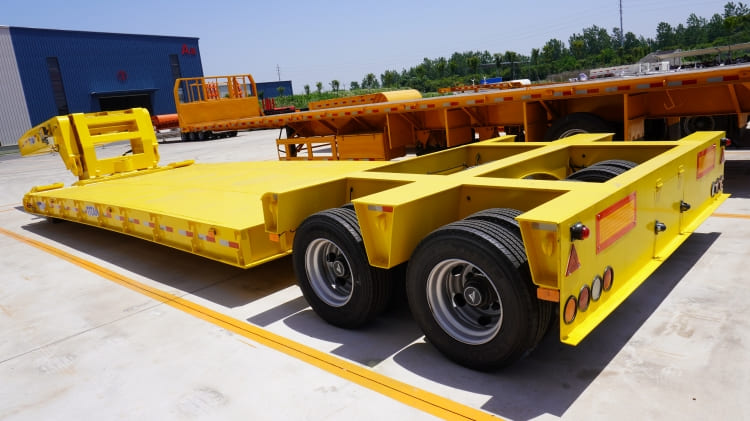

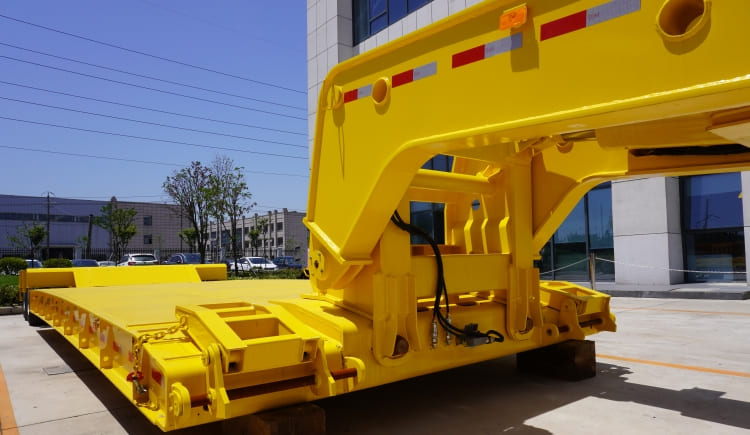

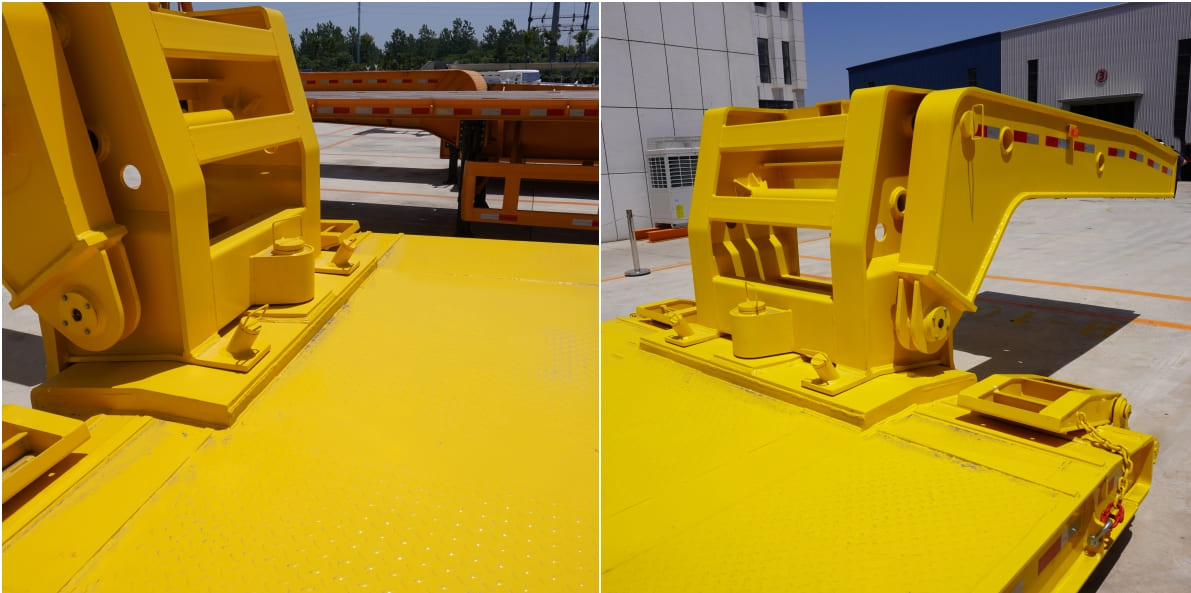

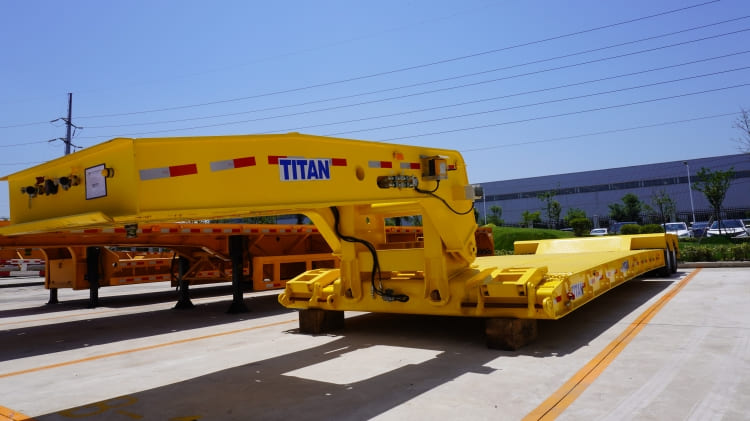

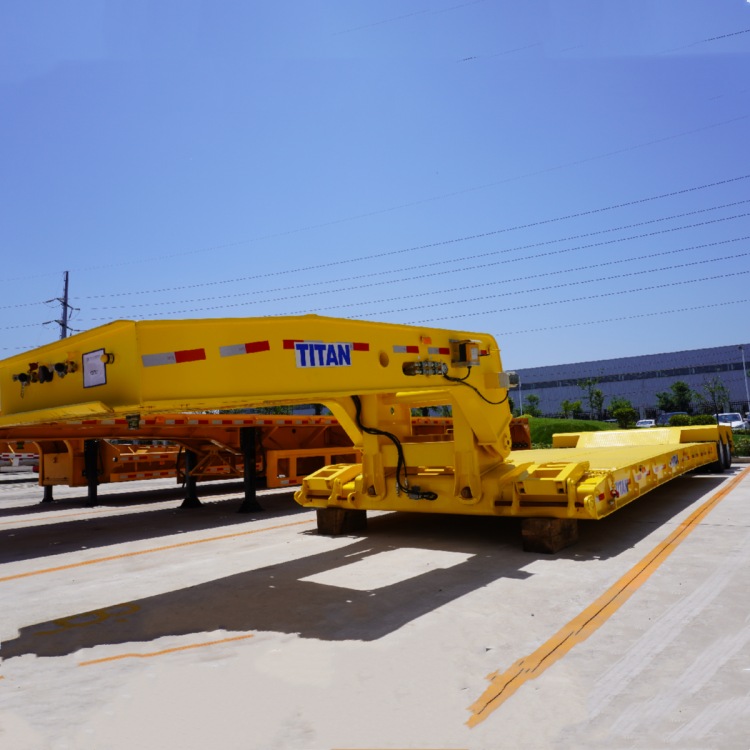

Lowboy Trailer Details:

2 Line 4 Axle Heavy Duty Detachable Lowboy Semi Trailer for Sale in Guinea

2 Line 4 Axle Heavy Duty Detachable Lowboy Semi Trailer for Sale in Guinea

Speicification of Lowboy Semi Trailer:

Model: 2 line 4 axle lowboy trailer

Loading capacity: 60-100 tons

Overall dimension: 15545mm * 2690mm *1500mm

Axle: 2 Line 4 Axle, 13T/16T, FUWA / BPW / TITAN Brand

Suspension: Heavy duty mechanical spring suspension

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Bottom Platform: 5mm thick checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Valve: WABCO valve

Brake system: WABCO brand

Gooseneck: Removable

ABS: Optional

Electical system: LED lights

Voltage: 24V

Light: LED light

Tool box: 1 pcs

Socket: 7-pin socket

Shipping method: Transport By bulk cargo shipping or RORO shipping

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Heavy Duty Lowboy Trailer Advantages:

1. The main and side beams of our detachable lowboy trailer for sale are made of HG60 high-strength structural steel. The side beam is designed as "H" shape. The yield strength of HG60 steel is ≥620Mpa, which is more durable and stronger than ordinary steel, and its bearing capacity is twice that of other ordinary steels.

2. TITAN heavy duty lowboy trailer hydraulic system has ten years of production experience and mature manufacturing technology. After five major system upgrades, the hydraulic system is now very stable. Customers only need regular maintenance, and it will be no problem for ten years.

3. Our lowboy semi trailer adopts a 16 ton braking system on the axle, Our axle has 9 years of production quality experience, better carrying capacity and good braking effect. Other factories use 13 ton brake system axles, which the braking effect is poor.

4. TITAN detachable lowboy trailer for sale braking system with effective braking, fast braking response, braking distance reduction of more than 5 meters. Also available is the wacbo braking system.

5. Heavy duty lowboy trailer has used the cooperative company's tires for over 12 years. Stable quality, mature technology and rich manufacturing experience, especially suitable for the complex road conditions in Africa. 200,000 km can be used for 2 years no problem.

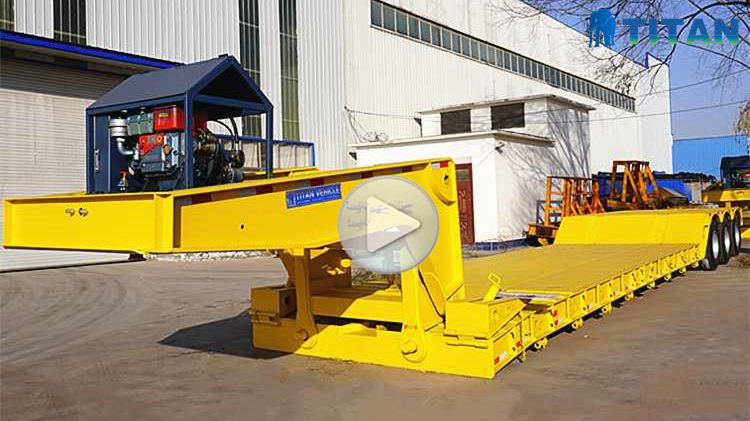

Through the video, you can know different types of custom lowboy trailer , heavy duty lowboy trailer , lowboy heavy haul trailers, etc.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
