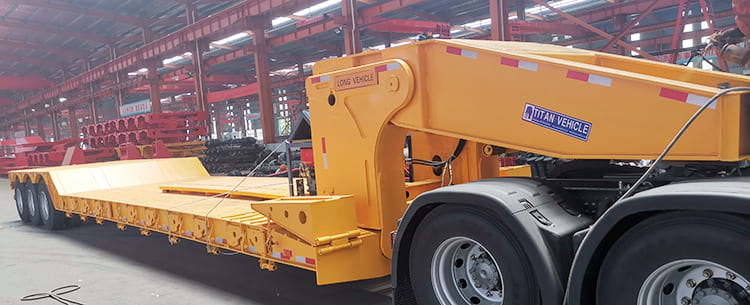

3 Axles Lowboy Gooseneck Trailer

Lowboy Gooseneck Trailer Description:

TITAN 3 axle low loader trailer has a wide range of applications, mainly used for medium and long distance cargo transportation. It is usually used to transport heavy vehicles (such as tractors, special vehicles, etc.), rail vehicles, mining machines, forestry machines, agricultural machines (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy loads.

TITAN Vehicle has the 2 axles, 3 axles, 4 axles lowboy gooseneck trailer with different capacities 60/80/100/120/150 Tons.

3 Axles Lowboy Gooseneck Trailer for Sale Near Me Manufacturers

3 Axles Lowboy Gooseneck Trailer for Sale Near Me Manufacturers

3 Axles Lowboy Gooseneck Trailer for Sale Near Me Manufacturers

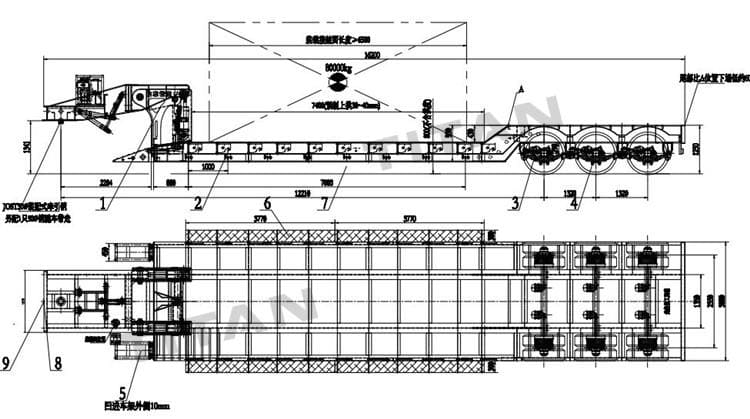

Lowboy Gooseneck Trailer Specification:

Dimension: 15800mm x 3000mm x 2500mm

Working platform: 14000*3800MM

Loading capacity: 60-80 TONS

Gooseneck: Removable

Side hook for chain or belt

Platform:5mm checkered plate

Twist locks :6 units for 40/45 ft container

Axle: 3 Axle

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

3 Axles Lowboy Gooseneck Trailer for Sale Near Me Manufacturers

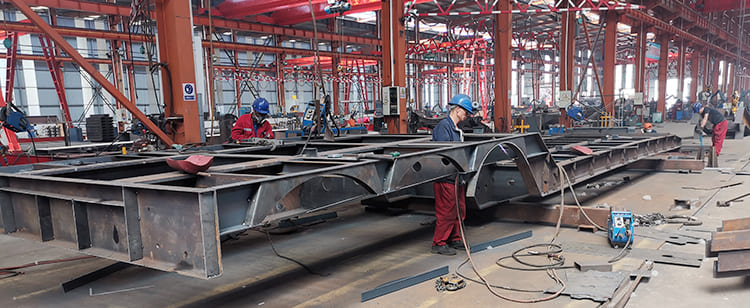

Lowboy gooseneck trailer for sale in the Factory:

1. The main beam of this lowboy gooseneck trailer for sale is made of HG60 high strength structural steel.

2. TITAN through beam use HG60 high strength steel. The thickness is 6mm, and the inclined support is HG60 with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole.

3. TITAN lowboy gooseneck trailer for sale hydraulic system, after five major system upgrades in ten years of production, the hydraulic system is now very stable. Customers only need regular maintenance, fully usable for ten years.

3 Axles Lowboy Gooseneck Trailer for Sale Near Me Manufacturers

Through the video, you can know more details of detachable gooseneck trailers , etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
