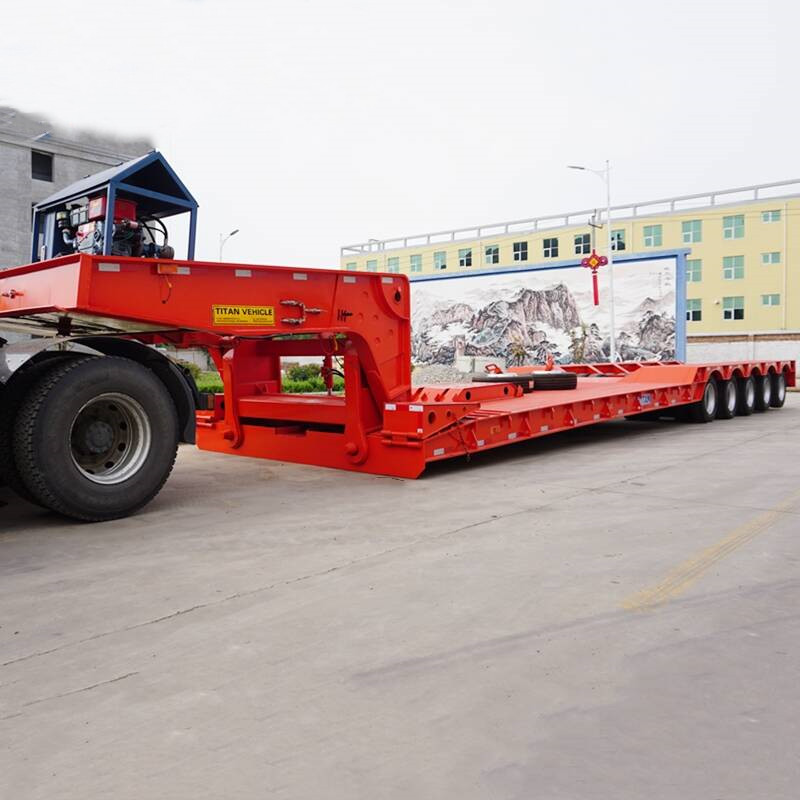

180T Removable Gooseneck Trailer

Name: 180T Removable Gooseneck Trailer
Rating: 0.00 (0 reviews)

TITAN 5 line 10 axle heavy duty 180 ton removable gooseneck trailer. Detachable gooseneck cargo table is very low, so the stability and security are very good. And TITAN also can provide all kinds different heavy duty lowboy semi trailer with different loading caoacity from 60-180 tons.

SKU:

GTIN:

MPN:

Brand:

Folding Gooseneck Description:

TITAN detachable lowboy trailer is noted for its highly robust structure steel and high loading capacity from 60 ton load capacity to 150 ton load capacity.TITAN can provide you the customize Removable Gooseneck Lowboy Trailer to meet your transport requirements.

Detachable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the RGN trailer is restored to the original transportation state in time for transportation.

Loading method for gooseneck trailer: cargo is loaded from the front. Detachable gooseneck cargo table is very low, so the stability and security are very good.

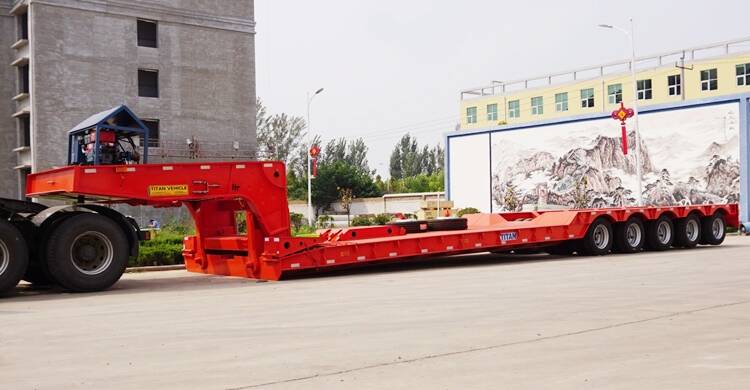

180T Removable Gooseneck Trailer For Sale

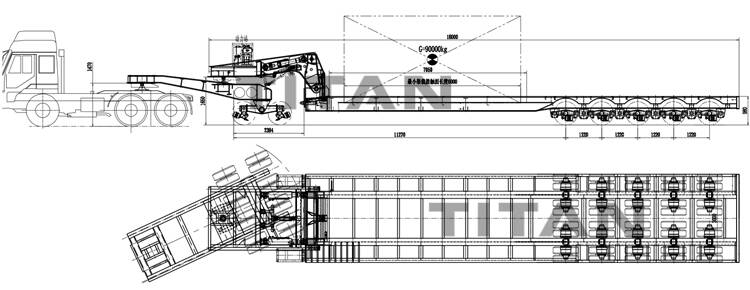

Folding Gooseneck Trailer Specification:

Model: 5 line 10 axle heavy duty lowboy semi trailer

Overall dimension：18000mm*3000mm*2200mm

Loading capacity: >150 ton

Gooseneck: Removable

Platform:5mm checkered plate

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Twist locks :6 units for 40/45 ft container

Axle: 10 Axle

Tire: 40 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

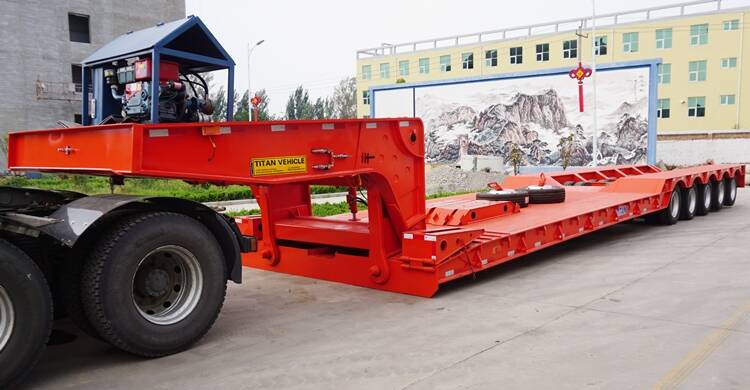

180T Removable Gooseneck Trailer For Sale

Folding Gooseneck Advantage:

1. The lower working platform height for the transport of high and voluminous loads.

2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.

3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

4. The loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.

5. The suspension ensures its have high loading capacity, and increase its capacity to twisting forces, shock, bump.

6. World-famous brand spare part, ensure high quality and save costs.

5 line 10 axle 180 ton removable gooseneck trailer

Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.
