Tri Axle 80 Ton Removable Gooseneck Trailer

Name: Tri Axle 80 Ton Removable Gooseneck Trailer
Rating: 0.00 (0 reviews)

The 80t removable gooseneck semi trailer is mainly used to transport large machinery and heavy equipment. The front gooseneck can be removed when loading and unloading goods. And TITAN also can provides all kinds of different removable gooseneck trailer for sale, such as 2/3/4 axle with load capacity from 40-100 tons.

SKU:

GTIN:

MPN:

Brand:

Removable Gooseneck Trailer Description:

TITAN 80t removable gooseneck trailer are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery (such as harvesters, wheeled tractors, conveyors, etc.), engineering Machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy loads.

TITAN removable gooseneck trailer for sale can separate the gooseneck from the trailer and realize the contact between the front end of the vehicle and the ground. After the loading of the goods is completed, the semi-trailer can be restored to the original transportation state in time.

What is a Removable Gooseneck Trailer for Sale? | Tri Axle 80 Ton Removable Gooseneck Trailer

Speicification of Removable Gooseneck Trailer:

Model: Tri axle 80 ton removable gooseneck trailer

Loading capacity: 60-80 tons

Overall dimension: 15545mm * 2690mm *1500mm

Axle: 3 Axle, 13T/16T, FUWA / BPW / TITAN Brand

Suspension: Heavy duty mechanical spring suspension

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Bottom Platform: 5mm thick checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Valve: WABCO valve

Brake system: WABCO brand

Gooseneck: Removable

ABS: Optional

Electical system: LED lights

Voltage: 24V

Light: LED light

Tool box: 1 pcs

Socket: 7-pin socket

Shipping method: Transport By bulk cargo shipping or RORO shipping

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

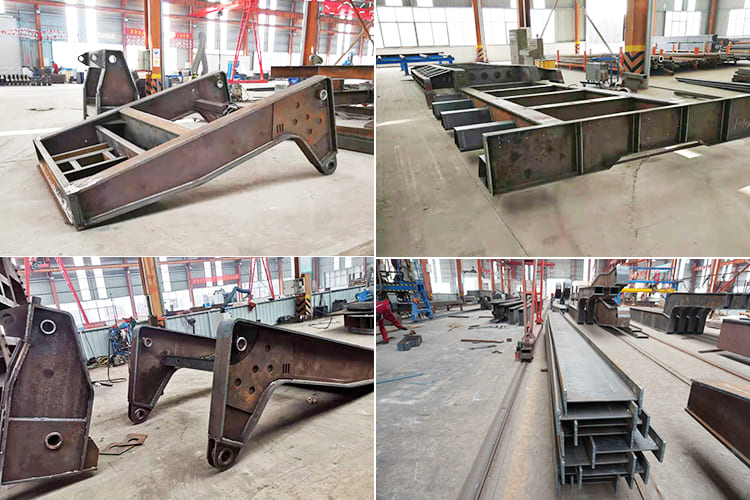

Removable Gooseneck Trailer in the Factory:

The side beam of removable gooseneck trailer for sale is designed in an "H" shape and is welded with HG 60 steel. Its bearing capacity is twice that of other steels, and it will not deform after ten years of use.

TITAN adopts HG60 high strength structural steel to make the frame, which is more durable and stronger than ordinary steel. TITAN removable gooseneck trailer for sale does not bend and deform during the transportation of goods.
