This model is 3 Axle 60ton Low Bed Trailer, it is mainly used for transporting heavy equipment and goods such as excavators, bulldozers, road repair equipment, large stones and wood. This model can bear up to 60 tons.

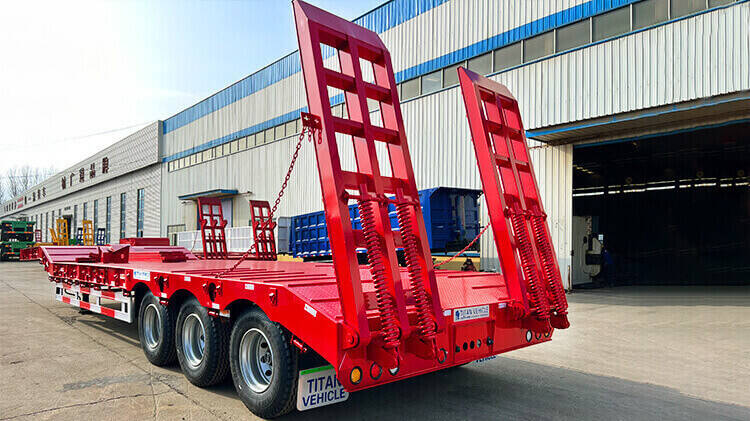

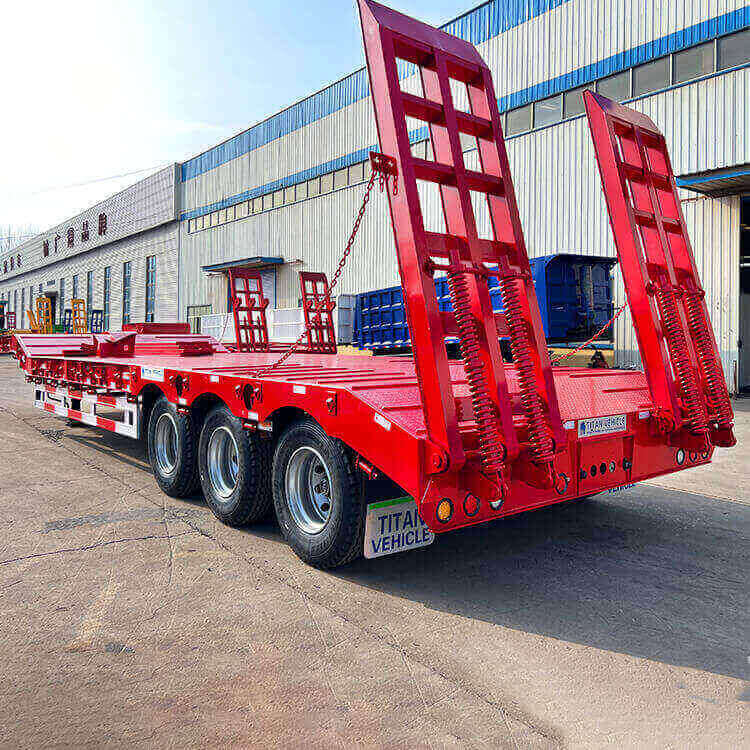

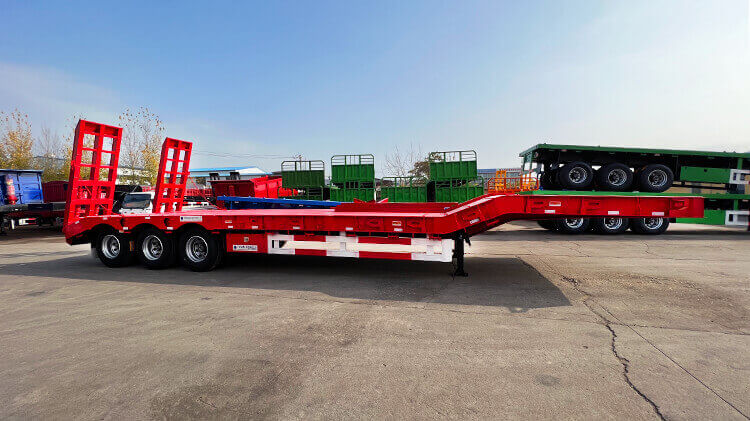

3 Axle 60ton Low Bed Trailer for Sale in Zambia
3 Axle 60ton Low Bed Trailer for Sale in Zambia
1. The main beam of our low bed trailer is made of HG high-strength steel with higher bearing capacity to prolong the service life of the main beam.
2. The surface of the low bed trailer body is painted with high-quality paint, which is highly pigmented and durable. After a multi-pass painting process, it can effectively protect the body and prevent the car from rusting.
3. The accessories use the world's most famous brands, saving costs while ensuring high quality.
4. The loading ramp has two optional spring ramps and hydraulic ramps, and additional reinforcements have been made inside the steel to make it have a higher load-bearing capacity and will not deform when handling heavy equipment.
Dimension: 13000*3000*1700mm
Capacity: 60T
Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel(Q460C)
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension
Platform: 5mm-thick checkered HSS plate

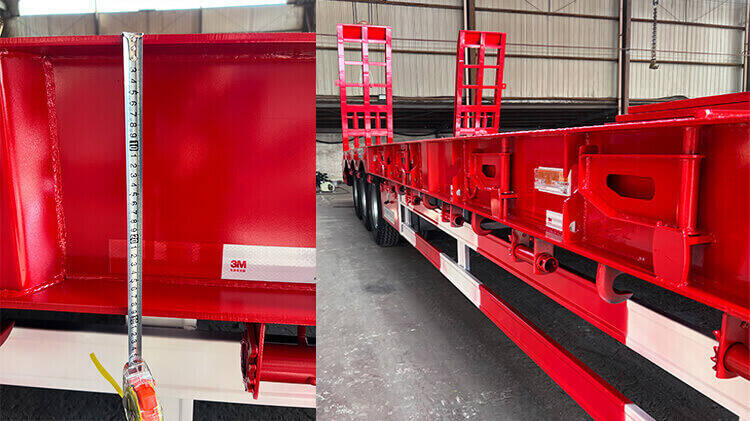

Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
Color: Optional
Landing Gear: Chinese Standard 28tons or JOST

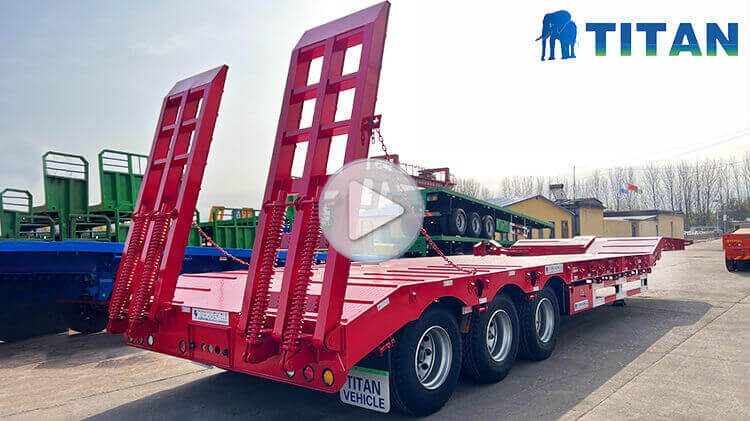

You can also click "TITAN Low Bed Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
