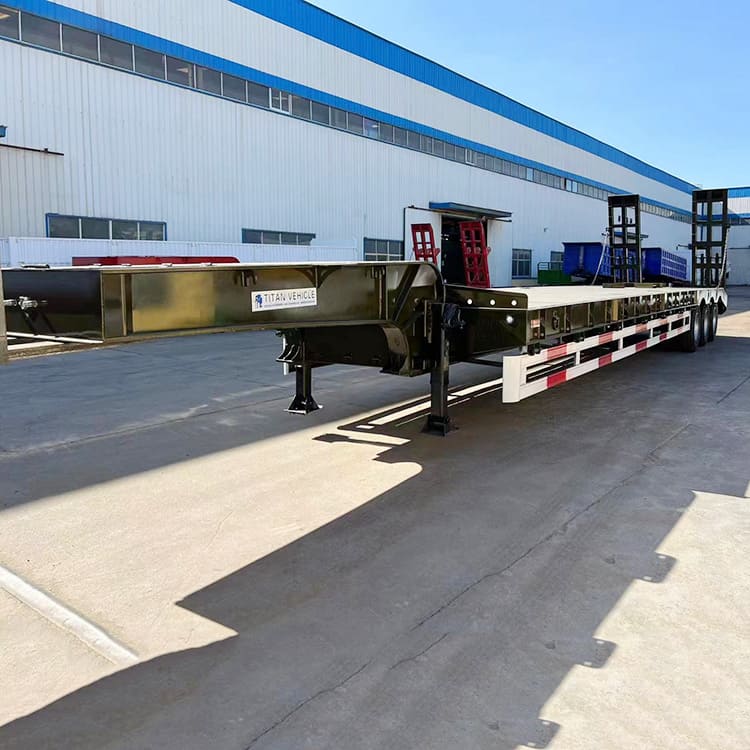

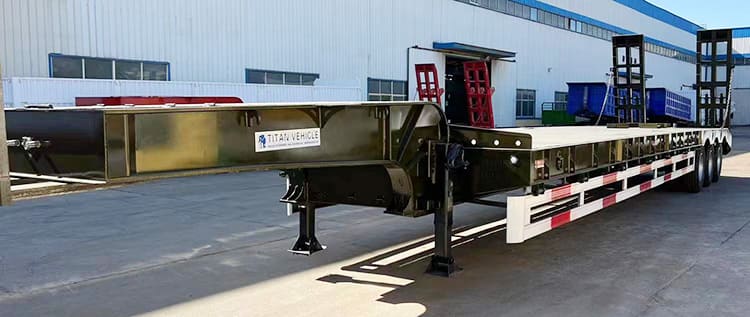

80 Ton 3 Axle Semi Low Bed Trailer

3 Axle Semi Low Bed Trailer:

TITAN 3 axle low bed trailer platform of the frame is low: the platform of the low flat semi-trailer is low, which is convenient for loading and unloading heavy goods. At the same time, it also has the advantage of a low center of gravity, which ensures the stability during transportation.

TITAN 3 axle low bed trailer have a larger loading capacity and is used to transport large goods.

80 Ton 3 Axle Semi Low Bed Trailer Price for Sale in Congo

80 Ton 3 Axle Semi Low Bed Trailer Price for Sale in Congo

80 Ton 3 Axle Semi Low Bed Trailer Price for Sale in Congo

Semi Low Bed Trailer Specification:

Overall dimension: 16800mm * 3000mm *1710mm

Loading capacity(T): 80T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 12.00R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

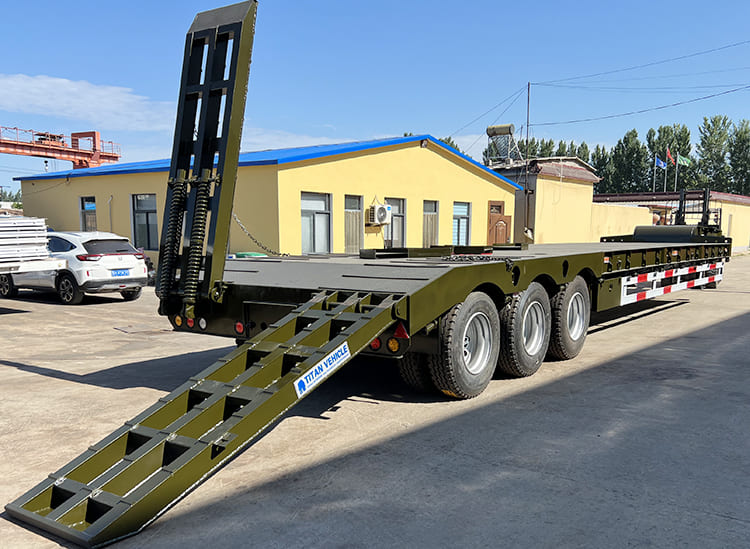

Ramp: Spring type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Shippment of the Lowbed for Sale:

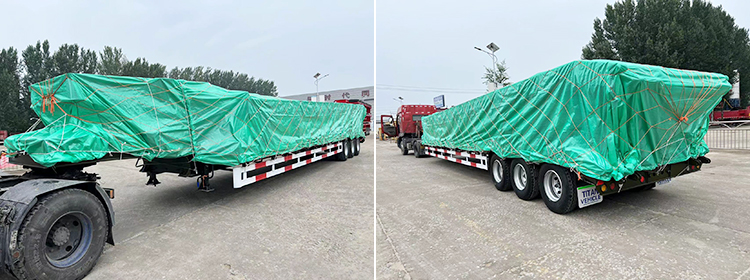

TITAN uses bulk or containerized transportation to package goods. After the customer chooses the method of bulk cargo transportation, TITAN will spray waterproof wax on the surface of the 3 axle low bed trailer to protect the semi-trailer and prevent the semi-trailer from rusting after being soaked in rainwater during transportation. At the same time, TITAN will also wrap the semi-trailer. Rain cloth, which can not only prevent the car body from being soaked by rain, but also prevent the semi-trailer from being scratched during transportation.

80 Ton 3 Axle Semi Low Bed Trailer Price for Sale in Congo

Details of the Shipment 80 Ton 3 Axle Semi Low Bed Trailer

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Get more videos, Welcome to click " TITAN lowbed trailer" on Youtube
