3 Axle 60ton Lowbed Trailer

3 Axle 60ton Lowbed Trailer

TITAN VEHICLE is a professional manufacture which exports Lowbed Trailer, Lowbed Trailer Types, 3 Axle Lowbed Trailer to many countries in the world.

SKU:
GTIN:
MPN:
Brand:

Description of 3 Axle Lowbed Trailer for Sale

3 Axle Lowbed Trailer. Its dimension is 13000m*3000*1700mm.

This 3 Axle Lowbed Trailer is mainly used for transporting heavy equipment and goods such as excavators, bulldozers, road repair equipment, large stones and wood. This model can bear up to 60 tons.

3 Axle 60ton Lowbed Trailer Types for Sale in Senegal

Details of 3 Axle 60ton Lowbed Trailer Types for Sale in Senegal

3 Axle 60ton Lowbed Trailer Types for Sale in Senegal

Details of 3 Axle 60ton Lowbed Trailer Types for Sale in Senegal

3 Axle 60ton Lowbed Trailer Types for Sale in Senegal



Advantages of 3 Axle Lowbed Trailer for Sale

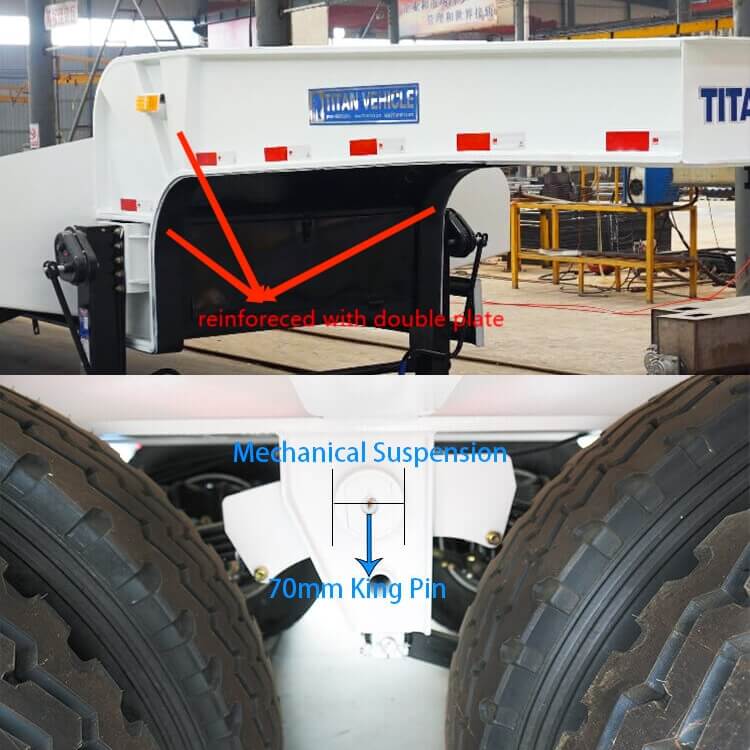

1. The double-spring ramp is made of high-strength steel, and multiple reinforcements are added inside the steel. It will not deform when carrying heavy equipment, has high load-bearing capacity and long service life.

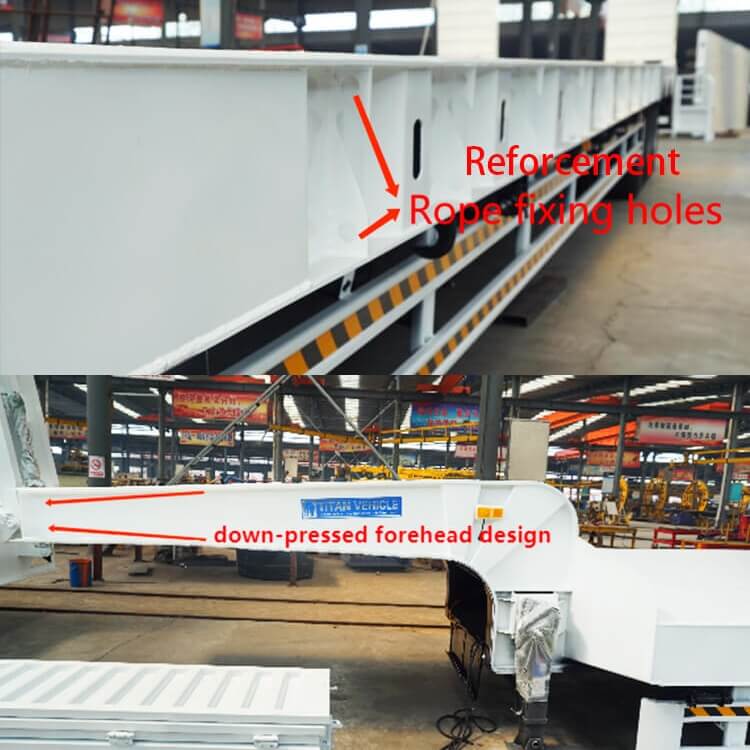

2. The crossbeam and side beam are connected to the main beam by welding to ensure the integrity of the main beam. This design can effectively reduce the deformation of the main beam and improve the bearing capacity and service life of the main beam.

3. The appearance of the 3 axle low bed trailer uses polyurethane paint, which has good color rendering and stronger adhesion, which can better protect the body and prevent the vehicle from rusting.



Specification of 3 Axle Lowbed Trailer for Sale

Model:3 Axle 60ton Lowbed Trailer

Dimension: 13000*3000*1700mm

Capacity: 60T-120T

Axles: 3 axles, 13T axle ( with 16T braking pads )

Material: HG60 high strength steel(Q460C)

Tire: 12R22.5

Rim: 9.00-22.5

Suspension: Mechanical suspension

Platform: 5mm-thick checkered HSS plate

Main Beam:  Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm

Side Beam:  300mm*140mm H-type(8/6/10mm)

King Pin: JOST 2.0inch or 3.5inch

Landing Gear:  Chinese Standard 28tons or JOST

Spring: 10pcs,16mm thick, 900mm wide

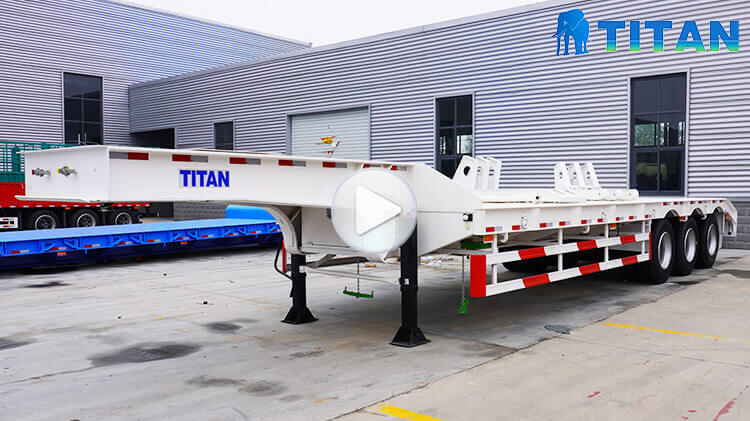

Vedio of 3 Axle Lowbed Trailer for Sale

3 Axle 60ton Lowbed Trailer Types for Sale in Senegal

You can also click "TITAN Lowbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
