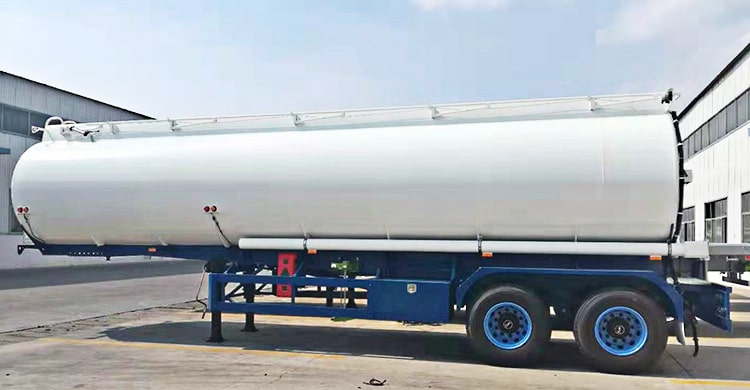

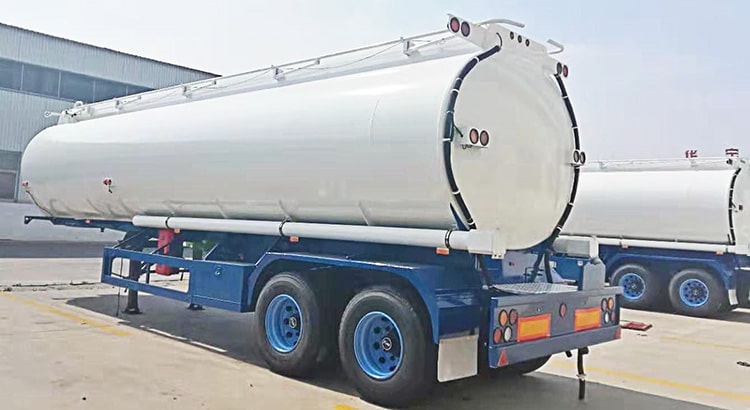

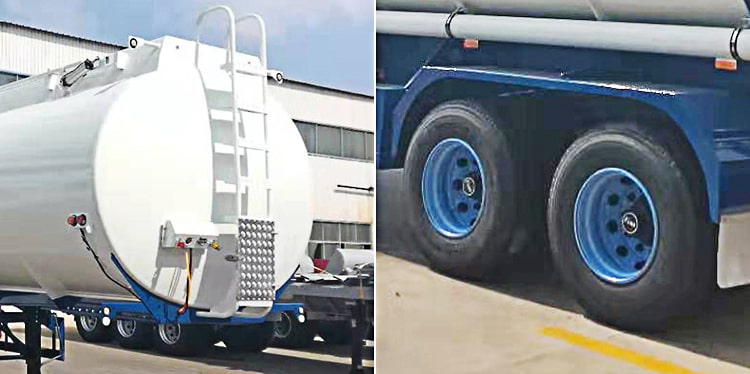

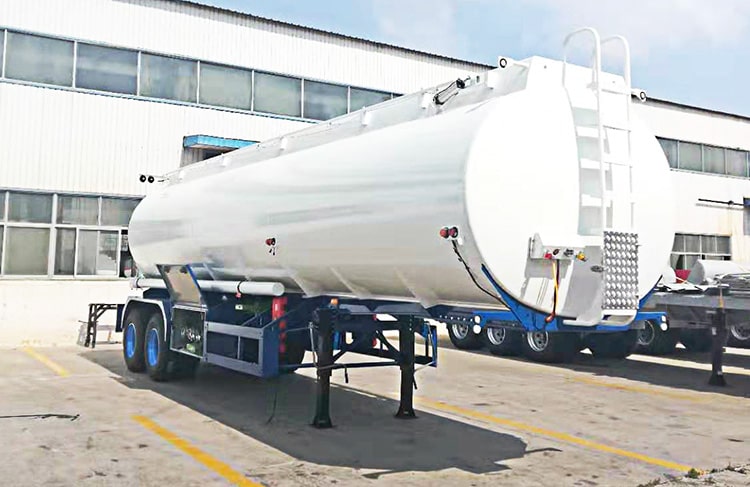

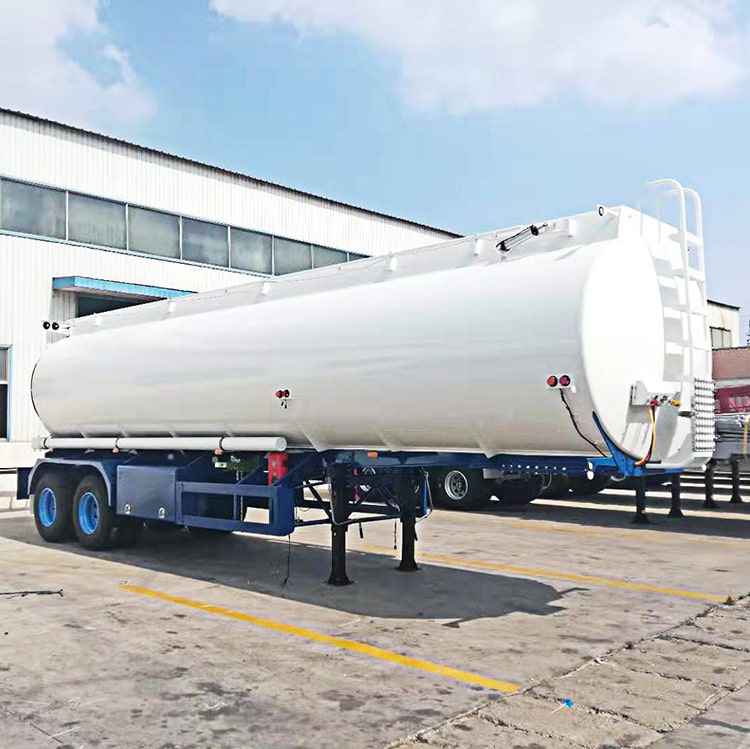

2 Axle 38000L China Petrol Diesel Tanker Trailer

Petrol Diesel Tanker Trailer for Sale Description:

TITAN Vehicle offers customers petrol diesel tanker trailer with different material, such as carbon steel, stainless steel, or aluminum material.  Diesel tanker trailer for sale can be used to transport diesel, gasoline, petroleum, etc., and can also be used to transport various edible oils, including coconut oil, olive oil, palm oil, etc.

The volume of the 38000l petrol diesel tanker trailer for sale can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters.  Each compartments has individual bottom valve, which can dispense different liquids.

Diesel Tanker Price | 38000L China Petrol Diesel Tanker Trailer for Sale

Diesel Tanker Price | 38000L China Petrol Diesel Tanker Trailer for Sale

Diesel Tanker Price | 38000L China Petrol Diesel Tanker Trailer for Sale

Diesel Tanker Price | 38000L China Petrol Diesel Tanker Trailer for Sale

Petrol Diesel Tanker Trailer Specification：

Shape: Round

Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³): 38000 Liters

Tank Body Material: 5mm or 6mm/ carbon steel

End plate: 5mm or 6mm/ carbon steel

Manhole Cover: carbon steel

Bottom Valve: API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 2 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

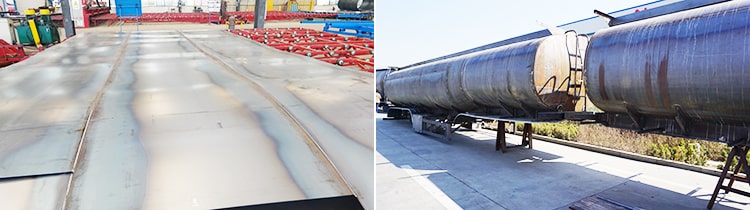

Petrol Diesel Tanker Trailer in the Factory:

TITAN petrol tanker trailer use Q345 low-carbon alloy steel to make the tanker trailer with a thickness of 5mm and a very strong tank body.

The tank body adopts the professional canning machine canning technology and forms at one time.The maximum to protect the tank to the firmness.

Diesel Tanker Price | 38000L China Petrol Diesel Tanker Trailer for Sale

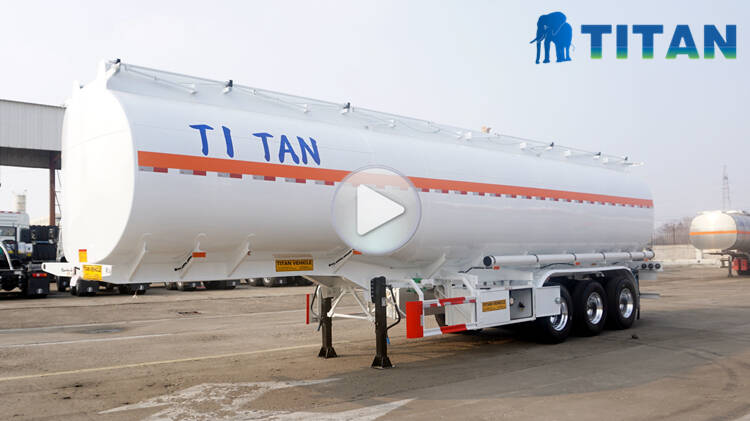

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
