60000 Liters Monoblock Tanker Trailer

Name: 60000 Liters Monoblock Tanker Trailer
Rating: 0.00 (0 reviews)

60000 Liters monoblock tanker trailer with different compartment can transport different kinds of liquid at the same time. This reduces the transportation cost and saves fuel because the trips are reduced to one. TITAN can provides all kinds of different model of tanker trailer for sale.

SKU:

GTIN:

MPN:

Brand:

Monoblock Tanker Trailer Description:

60000 liters monoblock tanker trailer for sale are divided into two types: transport oil tankers and add fuel tankers according to different functions. It is widely used in the transportation of petroleum, gasoline and its derivatives.

60000 liters fuel tanker trailer are just a collective term for all these types of fuel tankers for sale, and they are called differently in different places, depending on the configuration of the medium being transported.

60000 Liters Monoblock Tanker Trailer for Sale In Tanzania

Tanker Trailer for Sale Details:

60000 Liters Monoblock Tanker Trailer for Sale In Tanzania

Fuel Tanker Trailer Specification：

Shape: Round

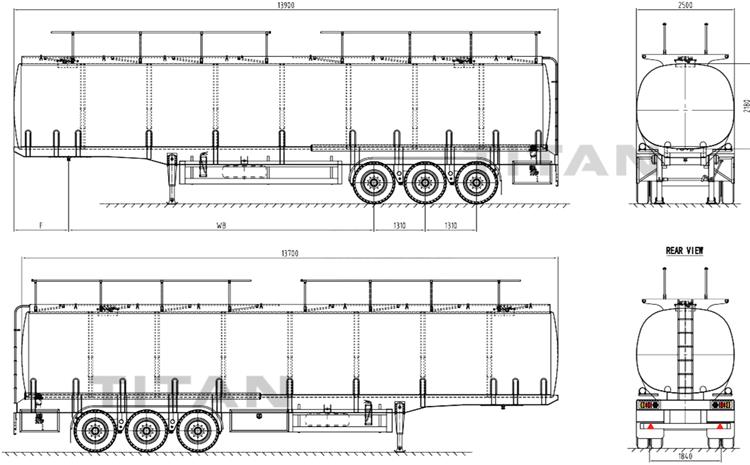

Dimension: 13920mm * 2550mm *3750mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³): 60000 Liters

Tank Body Material: 5mm or 6mm/ carbon steel

End plate: 5mm or 6mm/ carbon steel

Manhole Cover: carbon steel

Bottom Valve: API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

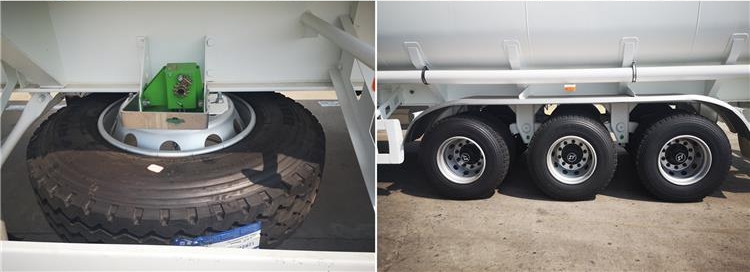

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12 units 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

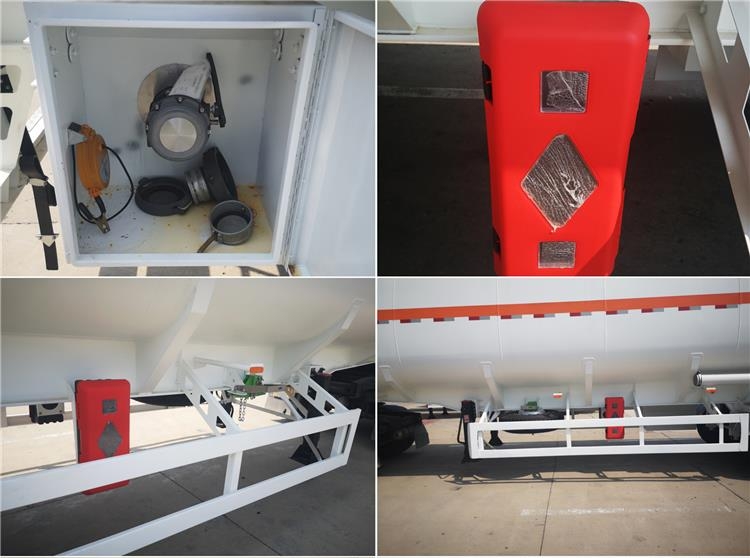

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

60000 Liters Monoblock Tanker Trailer for Sale In Tanzania

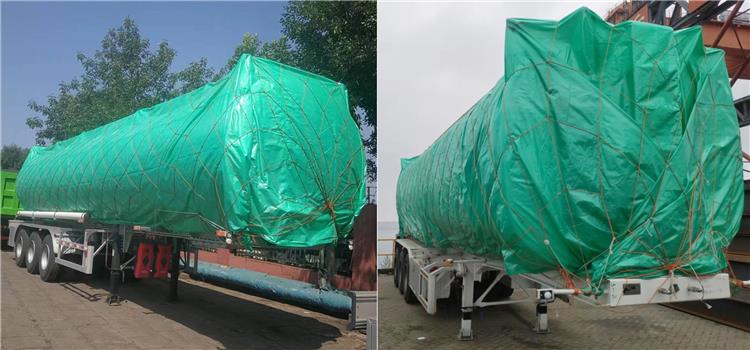

Packaging of Monoblock Tanker Trailer:

Generally, 60000 liters monoblock tanker trailer can reach customers after 7-25 days of transportation; we will do an excellent job to protect the semi tanker trailer from the seawater before transport.

60000 Liters Monoblock Tanker Trailer for Sale In Tanzania

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
