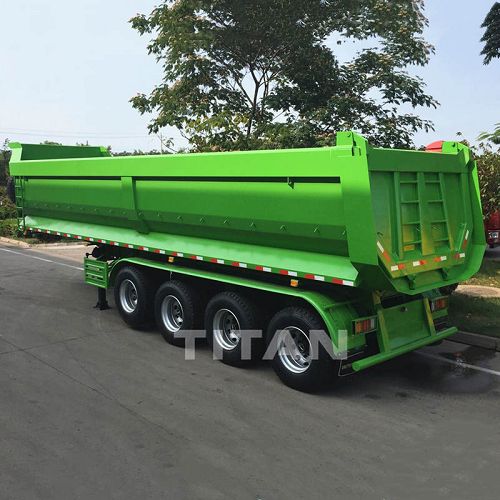

4 Axle 80 Ton Heavy Duty Dump Tipper Trailer

Name: 4 Axle 80 Ton Heavy Duty Dump Tipper Trailer
Rating: 0.00 (0 reviews)

TITAN Tractor Tipping Trailer adopt high strength steel to make it durable when load the sand or small stones or rocks. We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

SKU:

GTIN:

MPN:

Brand:

Dump Tipper Trailer Description：

TITAN dump trailers adopt high strength steel to make it durable when loading the sand or small stones or rocks. And the loading capacity is 40t, 60t, 80t.

TITAN Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

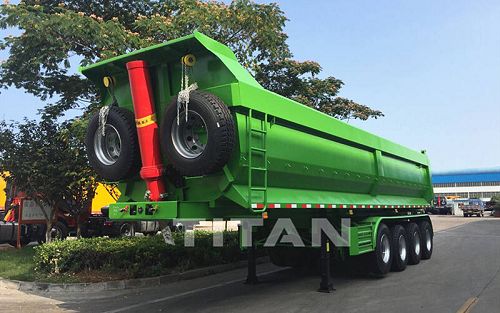

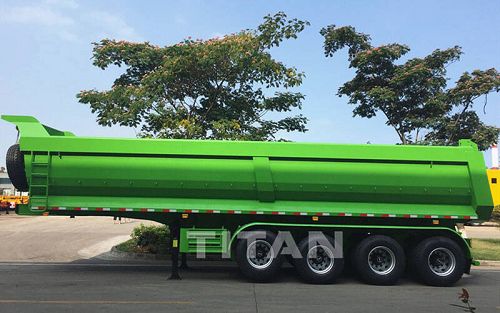

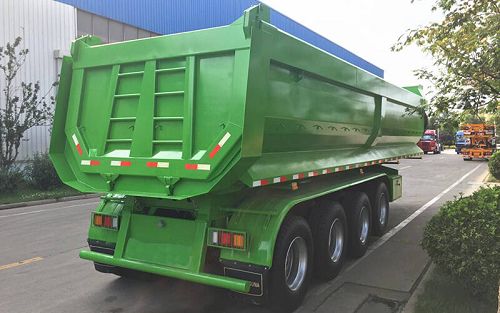

4 Axle 80 Ton Heavy Duty Dump Tipper Chassis Container Trailer

Dump Trailer Specification:

Dimension: 8500mmx2500mm x3950mm

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: High strength steel

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Hydraulic cylinder: Heavy-duty cylinder

Lifting System: Full set of HYVA lifting cylinder

Flip Bracket: 4 units

Axle: 4 axle, 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 16 unit, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Vice beam: 4 units

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Socket: 7-pin socket

Paint: polyurethane paint

Dump Trailer Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which has stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.
