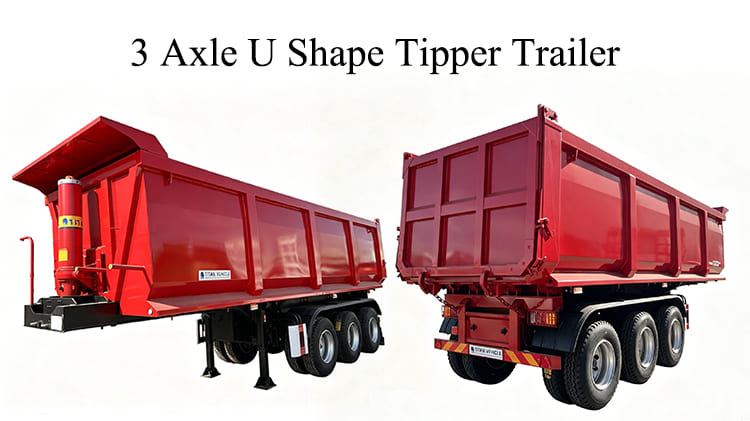

3 Axle U Shape Tipper Trailer

TITAN 3 Axle U Shape Tipper Trailer for Sale Price: 17000 USD

A high-quality tipping trailer needs to withstand frequent heavy loading and bumpy off-road driving, and this tipper semi trailer is fully reinforced with upgraded frame and lifting system specially for Senegal’s rugged mine roads, unpaved rural passages and construction site conditions. TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal stands out obviously with double main beam design, front and rear X-shaped balance beams and thickened large-diameter lifting cylinder.

The TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal applies professional double main beam structural design for the tipping trailer, with smooth and solid welding seams in all stressed positions. This optimization greatly enhances the frame’s resistance to torsion force, impact and road bump vibration, so the tipper semi trailer can reliably meet heavy loading demands on all kinds of uneven, rugged and sloped roads in Senegal. To further strengthen the overall frame stability, the TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal installs X-shaped balance beams on both front and rear ends of the main beam.

TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal

TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal

TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal

TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal

TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal

TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal

Specs of TITAN 3 Axle U Shape Tipper Trailer

Dimension: 9300mm x 2500mm x 3482mm

Total volume:35 CBM

Lifting System: Heavy duty TITAN lifting cylinder

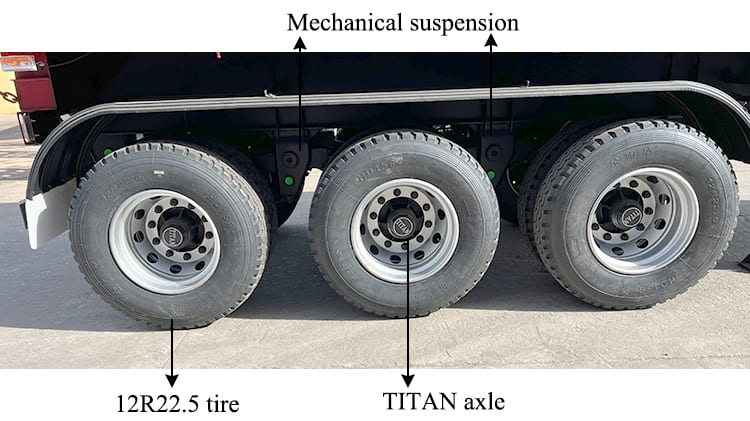

Axle: 3 Axle, 13 Tons

Tire: 12 units, 12R22.5 tire

Suspension: Mechanical suspension

Landing gear: 28 tons Landing Gear

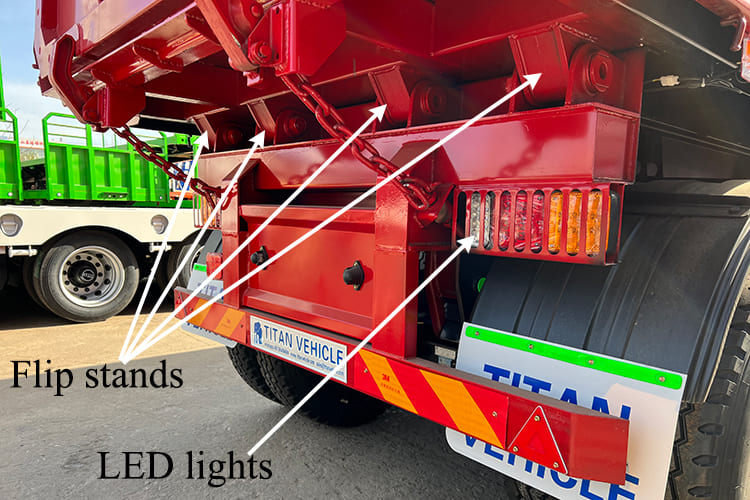

Light: LED light

Advantages of TITAN 3 Axle U Shape Tipper Trailer for Sale

This TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal is a three-axle U-type self-dumping semi-trailer tailored for bulk sand, stone, ore and construction waste transportation. The tipping trailer features double main beam reinforced frame with finely welded smooth and firm seams, greatly improving anti-torsion, anti-shock and anti-bump ability to fit multi-condition road loading. X-shaped balance beams are equipped at the front and rear of the main beam to lock the frame structure and prevent distortion during long-term use.

The tipper semi trailer is fitted with heavy-duty large-diameter hydraulic lifting cylinder, which delivers stronger lifting force and higher tipping height. The wide-bore cylinder ensures the whole box body rises more steadily during unloading, effectively lowering the risk of side rollover. The U-shaped cargo box reduces material residue during tipping, and the whole vehicle adopts wear-resistant steel plate and tropical anti-rust coating to adapt to Senegal’s dry, dusty and rainy tropical climate, guaranteeing the TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal stable high-intensity service.

The TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal adopts double main beam structure as the core upgrade of the tipping trailer. Ordinary tipper semi trailer with single main beam is weak in torsion resistance and easily twists on uneven mine roads in Senegal. The double main beam of this tipping trailer is connected by full-length smooth and sturdy welding seams, which effectively offsets lateral torsion force, road impact and continuous bump fatigue damage.

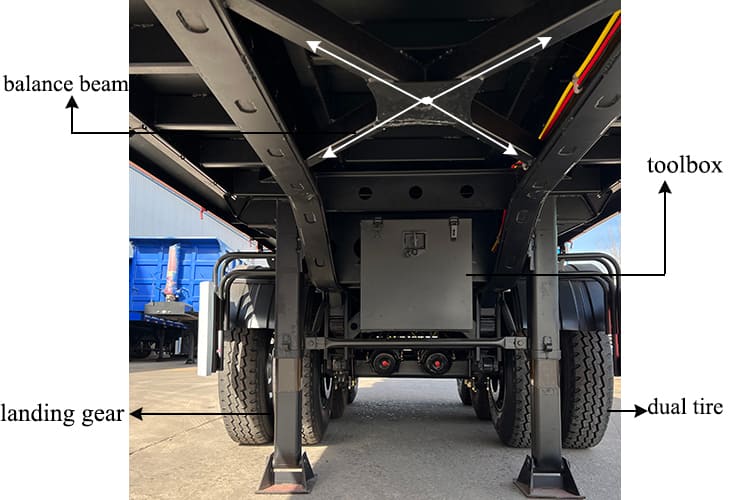

Another key reinforcement of the TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal is the X-shaped balance beams mounted on the front and rear of the main beam. The cross X balance beams of this tipper semi trailer form a stable force-bearing network, evenly distributing the pressure generated during hydraulic tipping and full-load driving.

The TITAN 3 Axle U Shape Tipper Trailer for Sale in Senegal is equipped with a heavy-duty hydraulic cylinder with wider diameter, which brings prominent advantages to the tipping trailer. The thick cylinder body provides powerful and steady upward thrust when unloading bulk stones and ores, the entire carriage lifts slowly and evenly without shaking or tilting, fundamentally reducing the risk of rollover during tipping operation on sloped construction sites in Senegal.
