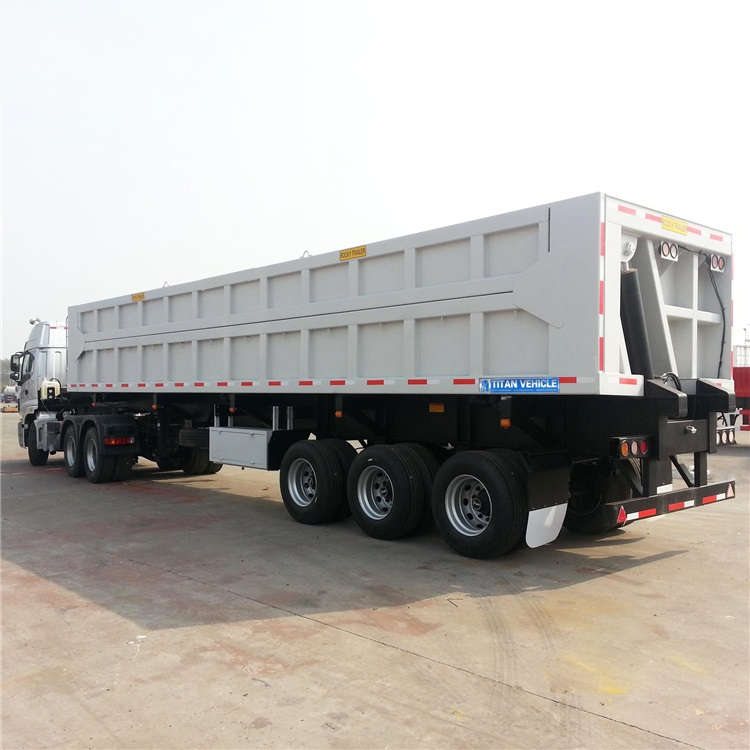

70 Tons Side Dumper Trailer

Name: 70 Tons Side Dumper Trailer
Rating: 0.00 (0 reviews)

Side dumper trailer is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

SKU:

GTIN:

MPN:

Brand:

Side Tipper Trailer Description:

Side dumper trailer is another type of dump truck trailer, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

Side tipper semi trailer are often used in conjunction with construction machinery such as excavators and loaders, and are mainly used for the loading, unloading and transportation of earthwork, gravel, and bulk materials. Including the transshipment and unloading of bulk containers such as coal, iron ore, corn, wheat, feed and other containers. Today, the use of side tipper trailer for sale capacity is also common in ports.

70 Tons Side Dumper Trailer for Sale

Side Dumper Trailer Specification:

Dimension: 8112mmx2500mm x3482mm ( inside dimension )

Total volume(ton): 60-80Ton

Side wall thickness: 4 - 6mm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 3 Axle, 13T, FUWA

Rim: 8.0-20 or 9.00-20

Tire: 12 units，12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.

Bottom Platform: 4-6mm thick checkered plate

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Advantage of Side Dumper Trailer:

1. Frame body Q345B high strength structure steel, automatic

2. submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

3. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.

4. TITAN side tipper trailer are equipped with HYVA cylinder, which is more reliable and more safety.

5. We suppply tipper semi trailers with multiple customization options.
