Tri Axle 35CBM Semi Tipper Trailer

Tipper Truck Trailer Description:

35cbm semi tipper trailer for sale as known as rear tipper trailer, the structure includes chassis, box, and lifting sys. Work by PTO supply oil to the cylinder, lifting box till to design angle, cargo slide out, improve unloading efficiency.

Hydraulic semi tipper trailers for sale can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons tipper tractor trailer,  120 tons-180 tons tipper semi trailer of different tonnage according to the different cargoes.

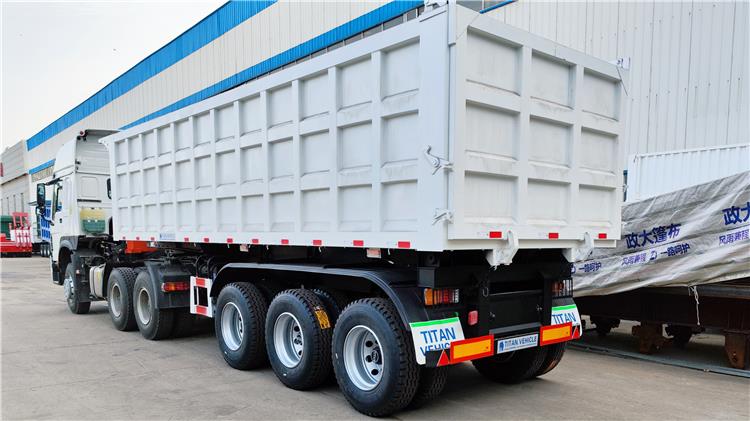

Tri Axle 35CBM Semi Tipper Trailer for Sale In Nigeria Lagos

Tri Axle 35CBM Semi Tipper Trailer for Sale In Nigeria Lagos

Tri Axle 35CBM Semi Tipper Trailer for Sale In Nigeria Lagos

Tri Axle 35CBM Semi Tipper Trailer for Sale In Nigeria Lagos

Semi Tipper Trailer Specifications:

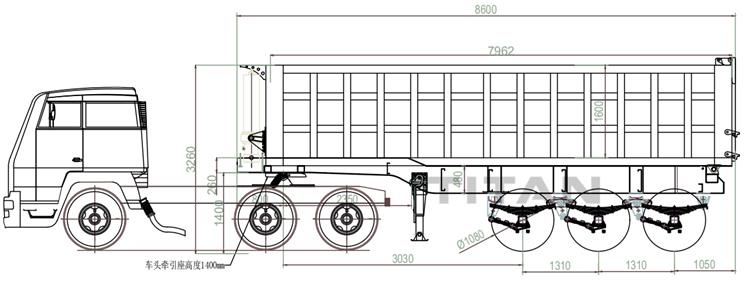

Dimension: 8600mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 35cbm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Tri Axle 35CBM Semi Tipper Trailer for Sale In Nigeria Lagos

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
