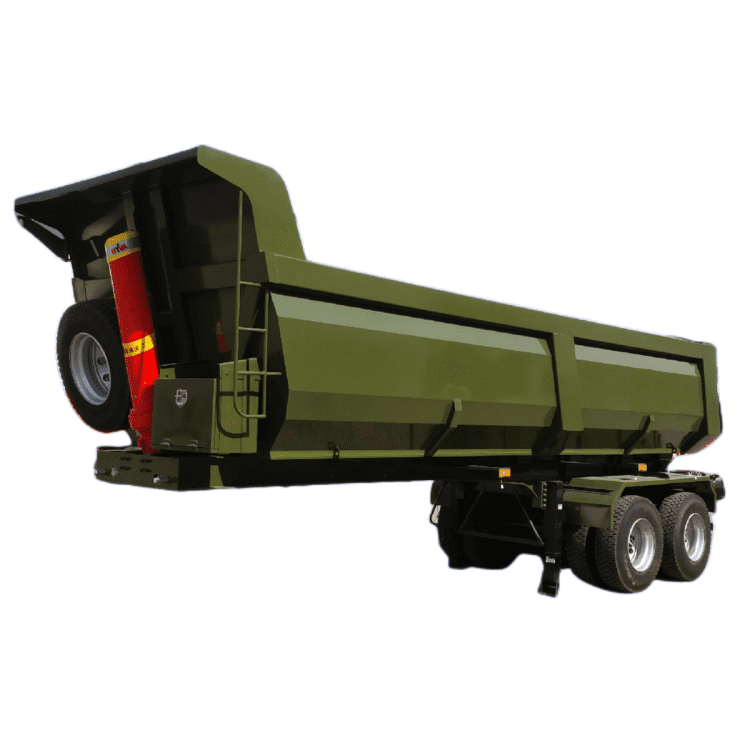

2 Axle End Dump Truck Trailer

Name: 2 Axle End Dump Truck Trailer
Rating: 0.00 (0 reviews)

The dump trailer for sale includes a carriage body, a movable bottom plate, a guardrail plate, a lifting oil cylinder, a piston rod, and a turning piece, and a movable bottom plate is arranged under the carriage body. The size of the dump truck trailer has 2/3/4 axles with the load capacity from 30-100 tons. Different dump trailer prices according to different configuration.

SKU:

GTIN:

MPN:

Brand:

Dump Trailer Description:

The frame design of the dump trailer for sale is reasonable, the craftsmanship is advanced, the operation is convenient, the height of the box is various, and the loading space is large. It is suitable for the transportation of bulk and scattered goods such as coal, ores, and construction materials.

Since the loading carriage of dump truck trailer can automatically tip over a certain angle for unloading, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special-purpose vehicle for transportation. It can also carry out loading and unloading transportation of earthwork, sand and gravel and bulk materials.

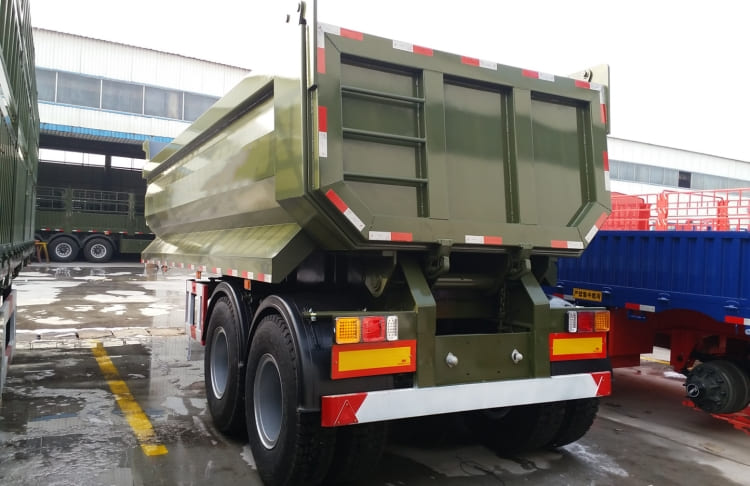

2 Axle End Dump Truck Trailer Prices for Sale in Zimbabwe

2 Axle End Dump Trailer Specification:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: High strength steel

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Hydraulic cylinder: Heavy-duty cylinder

Lifting System: Full set of HYVA lifting cylinder

Flip Bracket: 4 units

Axle: 2 axle, 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8 unit, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Vice beam: 4 units

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Socket: 7-pin socket

Paint: polyurethane paint

Dump Truck Trailer Advantages:

1. The TITAN dump trailer has the characteristics of high safety factor, advanced technology, light weight, high degree of automation, simple operation, reliable quality, economical and durable, etc.

2. The main beam of dump trailer for sale is designed with double plates, which have stronger carrying capacity; it is not easy to damage, and the steel material is HG60 high-strength steel.

3. Hydraulic cylinder is the heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

4. Our dump trailer for sale with 4 units flip brackets, which can make the tipper trailer more stable when unloading the cargo.

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
