3 Axle Drop Deck Semi Trailer

Description of Drop Deck Semi Trailer

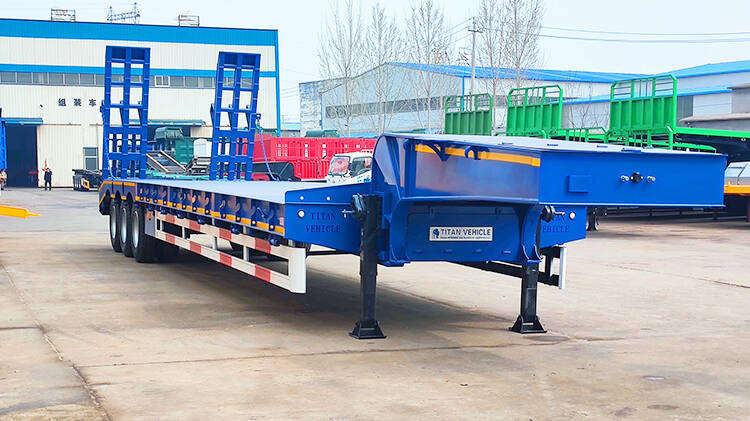

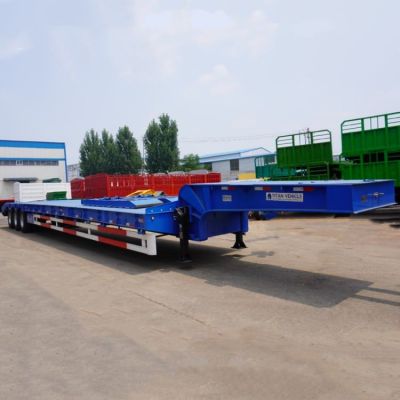

This 3 axle drop deck semi trailer dimension is 13000m*3000*1700mm.

This drop deck semi trailer is mainly used for transporting heavy equipment and goods such as excavators, bulldozers, road repair equipment, large stones and wood. This model can bear up to 80 tons.

3 Axle Drop Deck Semi Trailer for Sale Price in Tanzania

3 Axle Drop Deck Semi Trailer for Sale Price in Tanzania

Advantages of Drop Deck Semi Trailer

1. The body of the drop deck trailer is lower, allowing higher cargo or equipment to be transported.

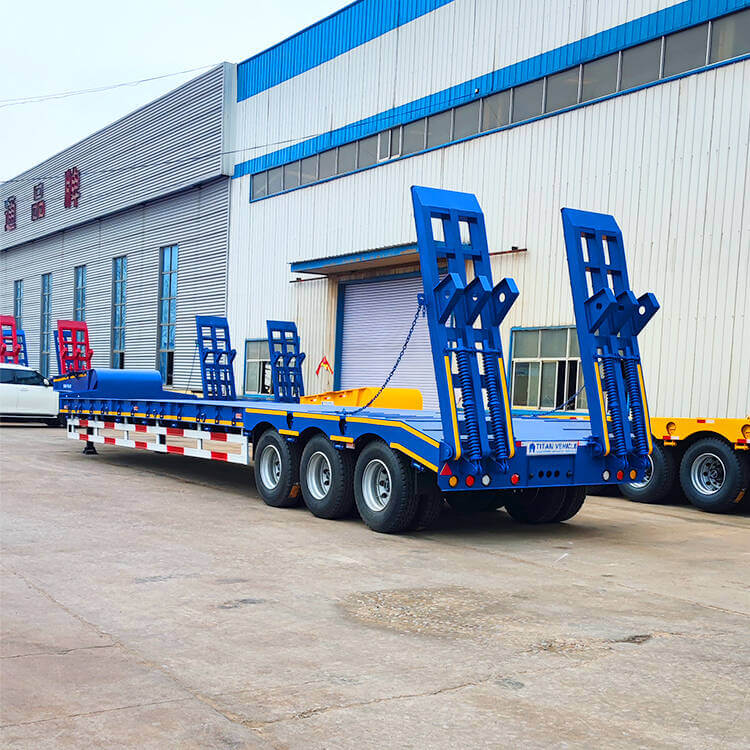

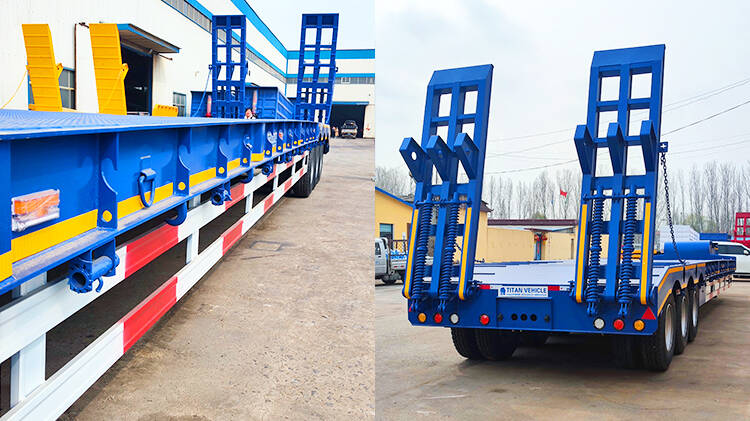

2. There are spring ramp and hydraulic ramp for the drop deck trailer. The hydraulic ramp is very easy to operate, and the spring ramp can also be easily handled by one person. Make the drop deck trailer easier to load and unload the equipment or cargo to be transported.

3. The drop deck trailer uses the highest quality structural system, which is very stable during transportation, and it is not easy to damage the goods due to bumps.

Specification of Drop Deck Semi Trailer

Model:3 Axle Drop Deck Semi Trailer

Dimension: 13000*3000*1700mm(depends on final design)

Capacity: 80T

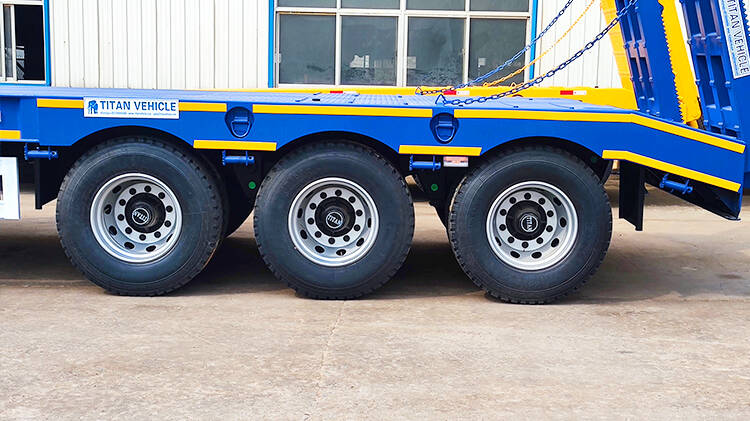

Axles: 3 axles, 13T axle ( with 16T braking pads )

Material: HG60 high strength steel（Q460C）

Tire: 12R22.5

Rim: 9.00-22.5

Suspension: Mechanical suspension

Platform: 5mm-thick checkered HSS plate

Main Beam:  Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm

Side Beam:  300mm*140mm H-type(8/6/10mm)

King Pin: JOST 2.0inch or 3.5inch

Landing Gear:  Chinese Standard 28tons or JOST

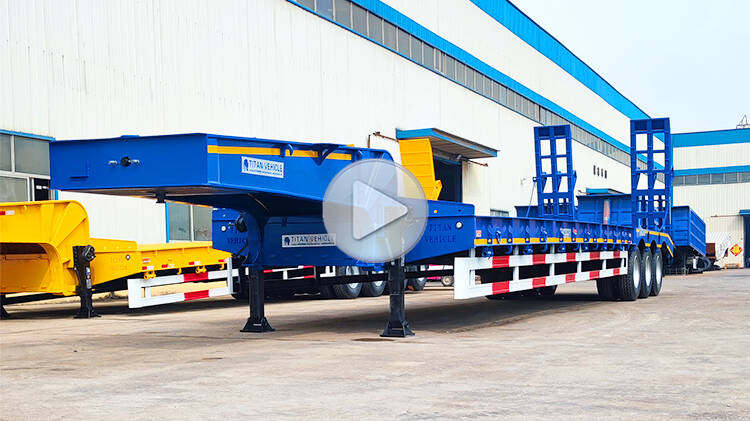

Video of Drop Deck Semi Trailer

You can also click "TITAN Drop Deck Semi Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
