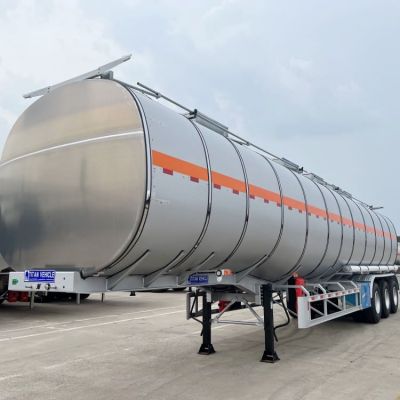

New 40000Ltrs Aluminum Tanker Trailer

Aluminum Tanker Trailer Description:

The 40000ltrs aluminum tanker trailer is a tanker truck that connects the trailer part with the tractor. The 40000ltrs aluminum tanker trailer can effectively improve the transportation efficiency. Under the condition of the same tonnage, the transportation cost is reduced and the fuel consumption is saved.

At the same time, the tank body of this aluminum tanker trailer is made of aluminum alloy, which makes the overall weight of the tanker lighter and more convenient to drive.

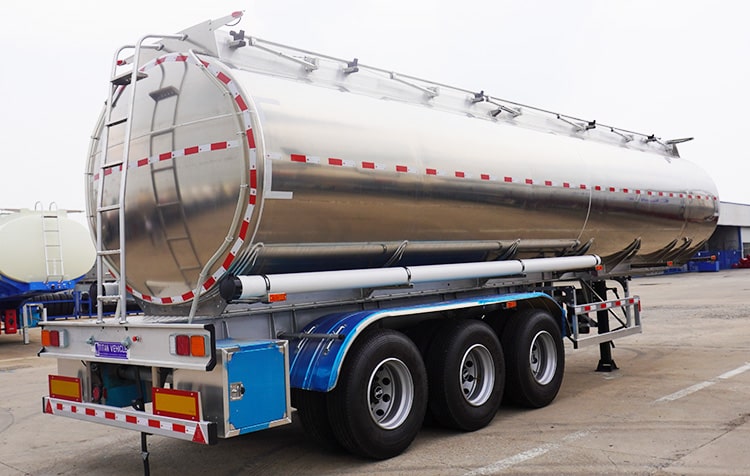

New 40000Ltrs Aluminum Tankers Trailers for Sale in Zimbabwe

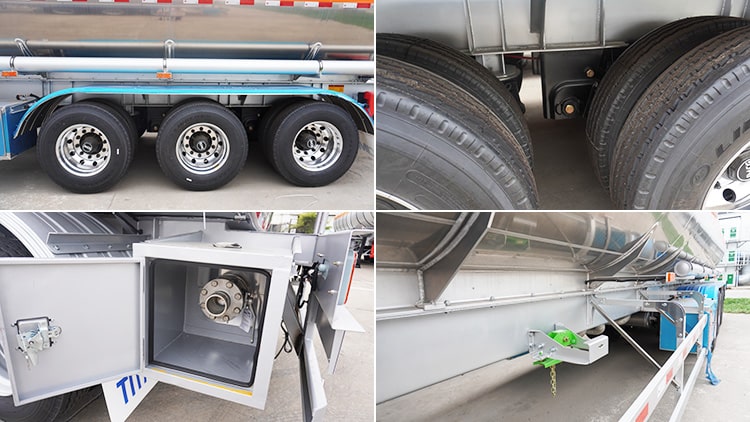

New 40000Ltrs Aluminum Tankers Trailers for Sale in Zimbabwe

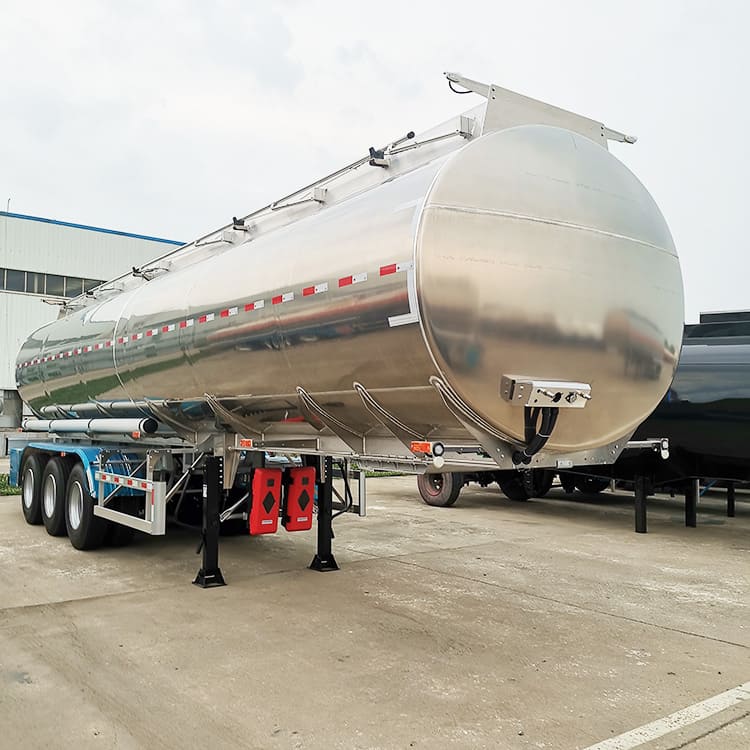

New 40000Ltrs Aluminum Tankers Trailers for Sale in Zimbabwe

Specification of Aluminum Tanker Trailer：

Shape: Round

Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³): 40000 liters

Tank Body Material: 5mm or 6mm aluminum steel

End plate: 5mm or 6mm aluminum steel

Manhole Cover: aluminum steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

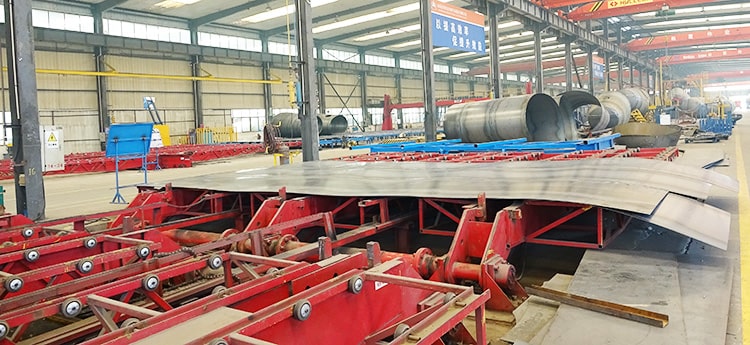

Aluminum Tanker Trailer in the Factory:

The tank body adopts the professional canning machine canning technology and forms at one time.The maximum to protect the tank to the firmness.

All TITAN tanker after the production will be carried out pressure test and metal inspection test, to ensure the tank sealing good.

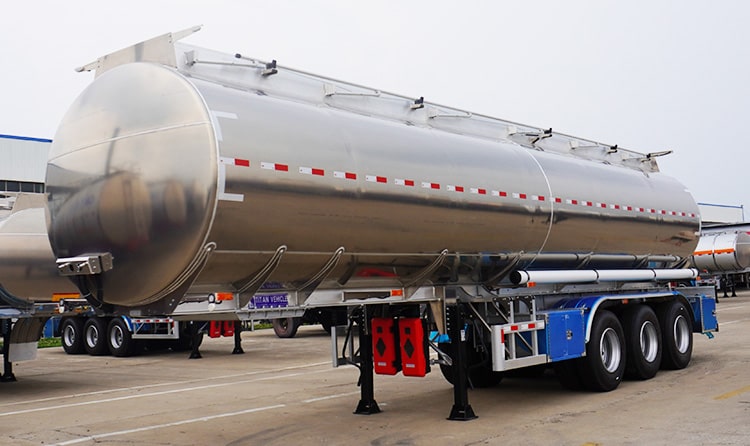

New 40000Ltrs Aluminum Tankers Trailers for Sale in Zimbabwe

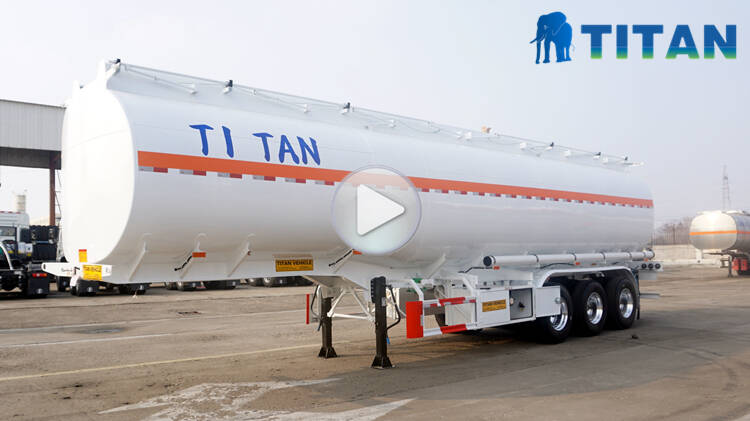

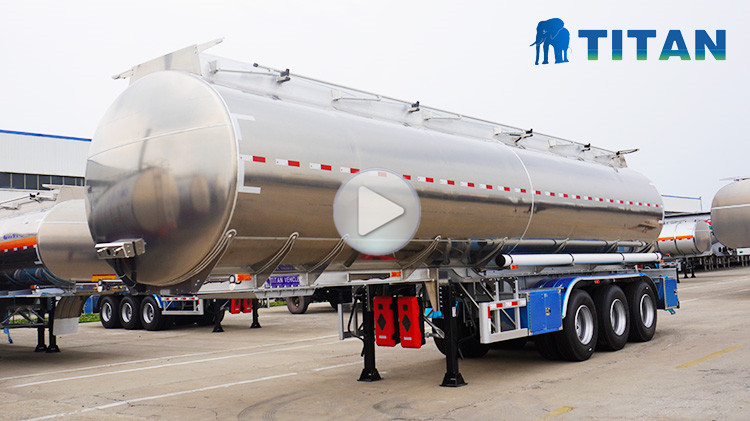

Video of Aluminum Tanker Trailer

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
